Description

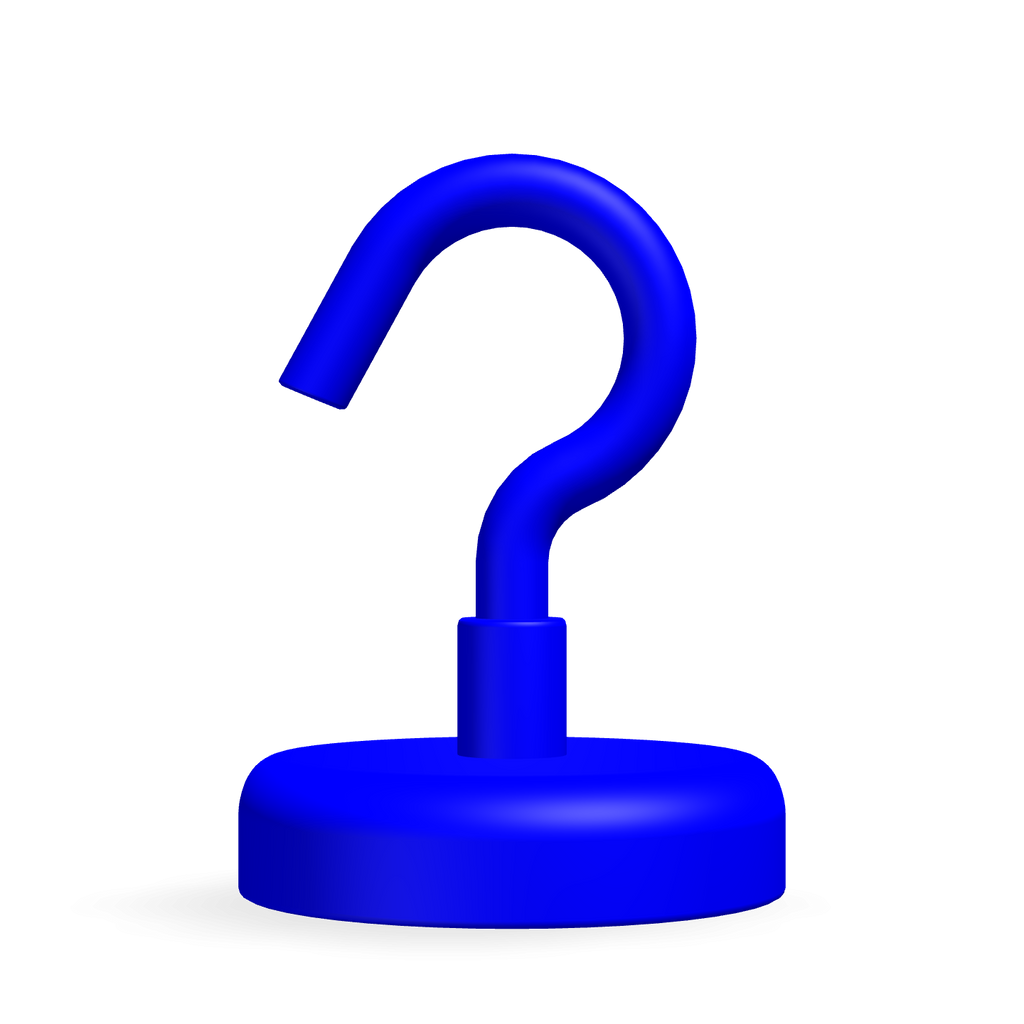

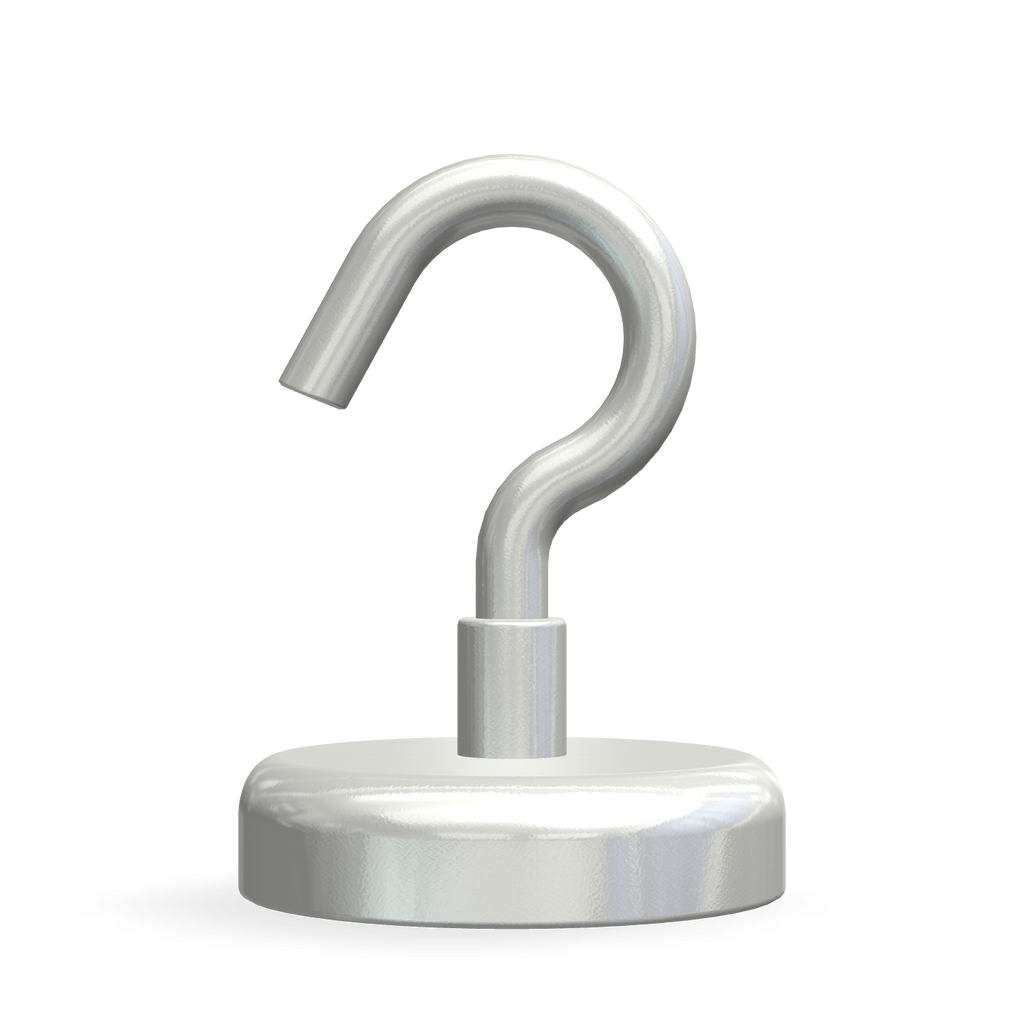

A Cap Neodymium Hook magnet combines strong neodymium magnetic force with a convenient hook, making it ideal for hanging and organizing items. Made from high-performance neodymium-iron-boron alloy, it provides exceptional holding power, perfect for industrial, commercial, and home use where reliable and versatile attachment is needed.
| name | Product Specifications | SI | CGS |
|---|---|---|---|
| shape | |||
| Diameter | D | 60 mm | 6 cm |
| Diameter | d | 50 mm | 5 cm |
| omission | S | 17 mm | 1.7 cm |
| Long | L | 30 mm | 3 cm |
| width | W | 12 mm | 1.2 cm |
| High | H | 15 mm | 1.5 cm |
| High | h | 11.8 mm | 1.18 cm |
| Thickness | T | 3 mm | 0.3 cm |
| screw | M | 8 mm | 0.8 cm |
| Magnetization Direction | M | Axial direction | |
| surface treatment | NiCuNi | 12 μm | - |
| Magnetic properties | |||
| Suction force/ adsorption force |
F | 113 kgf | 113000 gf |
| Maximum operating temperature | Tw | 80 °C | 176 °F |
| Material property | |||
| Material symbol | Cap Neodymium | 35 | |
| Residual magnetic flux density | Br | 1170-1220 mT | 11.7-12.2 kg |
| Coercive force | Hcb | ≧868 kA/m | ≧10.9 kOe |
| Intrinsic coercivity | Hcj | ≧955 kA/m | ≧12 kOe |
| Maximum Energy Product | BH | 263-287 kj/m3 | 33-36 MGOe |
| Temperature coefficient | Br | -0.12 %/℃ | 31.78 %/°F |
| Hcj | -0.55 %/℃ | 31.01 %/°F | |
| Heatproof temperature | Tw | ≦80 ℃ | <= 176 °F |
| Curie temperature | Tc | 310 ℃ | 590 °F |
| density | ρ | 7.5 kg/m3 | - |
| weight | Net | 0.30042 kg | 300.42 g |
| remarks | |||
| REACH RoHS Directive | |||
Warning
This product is not a toy and is unsuitable for children. Designed for scientific and industrial use, it contains strong Neodymium magnets that can be harmful if swallowed. These magnets are brittle and may chip or break upon impact. Handle with care. Please review the Warnings page before ordering.
