Description

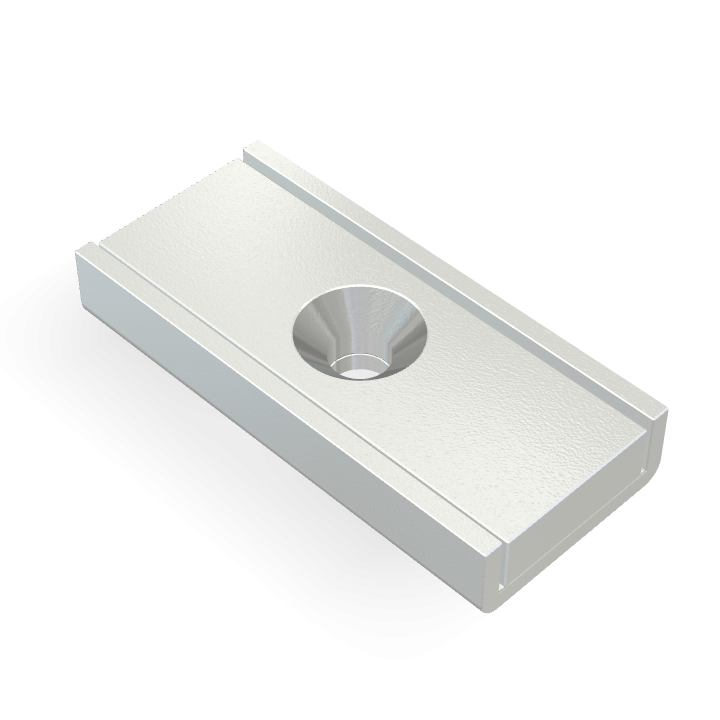

A Cap Neodymium Square/Block Countersunk Magnet features a powerful neodymium magnet in a square or block shape with a countersunk hole for flush mounting with screws. Made from high-performance neodymium-iron-boron alloy, it offers exceptional magnetic strength and durability. Ideal for industrial, commercial, and DIY applications requiring strong, reliable magnetic attachment with a clean, integrated finish.
| name | Product Specifications | SI | CGS |
|---|---|---|---|
| shape | |||
| omission | S | 7 mm | 0.7 cm |
| Long | L | 30 mm | 3 cm |
| width | W | 13.5 mm | 1.35 cm |
| width | w | 10.3 mm | 1.03 cm |
| Inner diameter | ID | 3.5 mm | 0.35 cm |
| High | H | 5 mm | 0.5 cm |
| High | h | 3.4 mm | 0.34 cm |
| Thickness | T | 1.2 mm | 0.12 cm |
| screw | M | 3 mm | 0.3 cm |

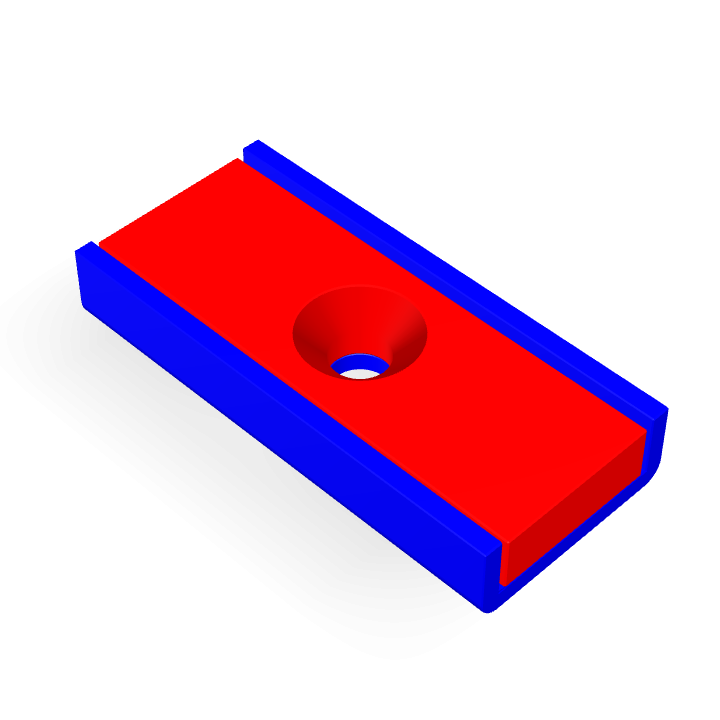

| Magnetization Direction | M | Axial direction | |
| surface treatment | NiCuNi | 12 μm | - |
| Magnetic properties | |||
| Suction force/ adsorption force |
F | 7.45 kgf | 7452 gf |
| Maximum operating temperature | Tw | 80 °C | 176 °F |
| Material property | |||
| Material symbol | Cap Neodymium | 35 | |
| Residual magnetic flux density | Br | 1170-1220 mT | 11.7-12.2 kg |
| Coercive force | Hcb | ≧868 kA/m | ≧10.9 kOe |
| Intrinsic coercivity | Hcj | ≧955 kA/m | ≧12 kOe |
| Maximum Energy Product | BH | 263-287 kj/m3 | 33-36 MGOe |
| Temperature coefficient | Br | -0.12 %/℃ | 31.78 %/°F |
| Hcj | -0.55 %/℃ | 31.01 %/°F | |
| Heatproof temperature | Tw | ≦80 ℃ | ≦176 °F |
| Curie temperature | Tc | 310 ℃ | 590 °F |
| density | ρ | 7.5 kg/m3 | - |
| weight | Net | 0.0136 kg | 13.6 g |
| remarks | |||
| REACH RoHS Directive | |||
Warning
This product is not a toy and is unsuitable for children. Designed for scientific and industrial use, it contains strong Neodymium magnets that can be harmful if swallowed. These magnets are brittle and may chip or break upon impact. Handle with care. Please review the Warnings page before ordering.
