Description

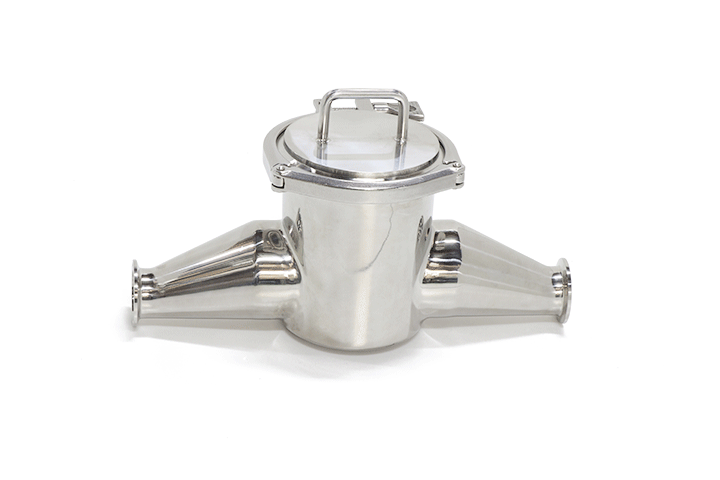

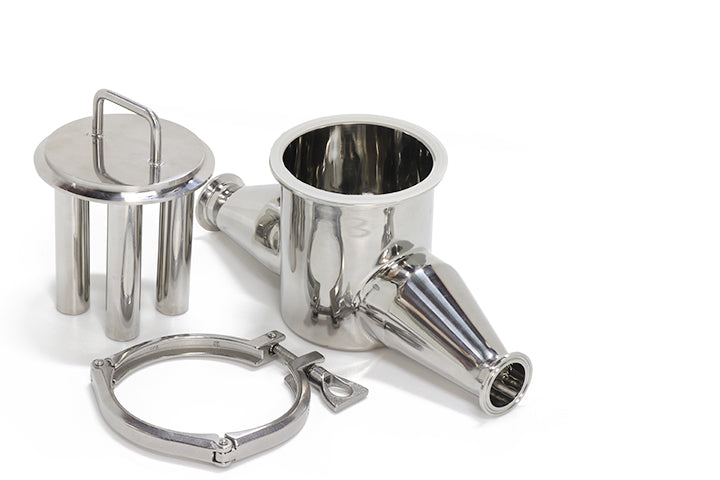

The magnetic filter for liquid can be installed in the pipeline where liquid materials flow to effectively remove magnetic metallic foreign substances mixed in the materials. Suitable for liquids and viscous materials such as food, beverages, and pharmaceuticals. The housing is made of corrosion-resistant stainless steel for hygienic use.
| name | Product Specifications | SI | CGS |
|---|---|---|---|
| shape | |||
| Diameter | D | 35.7 mm | 3.57 cm |
| Diameter | d | 114.3 mm | 11.43 cm |
| omission | S | 4.5 mm | 0.45 cm |
| omission | s | 1.5 mm | 0.15 cm |
| Long | L | 330 mm | 33 cm |
| Inner diameter | ID | 130 mm | 13 cm |
| High | H | 180 mm | |
| number | Q | Five | |
| Magnetization Direction | M | Axial direction | |
| surface treatment | |||
| Magnetic properties | |||
| Surface magnetic flux density | B | 1400mT | 14000 Gauss |
| Maximum operating temperature | |||
| Material property | |||
| Material symbol | Magnetic filter for liquids | 316 | |
| density | ρ | 7.85 kg/m3 | - |
| weight | |||
| remarks | |||
| REACH RoHS Directive | |||
Warning
This product is not a toy and is unsuitable for children. Designed for scientific and industrial use, it contains strong Neodymium magnets that can be harmful if swallowed. These magnets are brittle and may chip or break upon impact. Handle with care. Please review the Warnings page before ordering.
