Description
Experience unparalleled strength and reliability with our premium neodymium magnets. Engineered for maximum performance, these powerful magnets are perfect for a wide range of applications, from industrial uses to creative DIY projects. Discover the difference quality makes with our neodymium magnets.

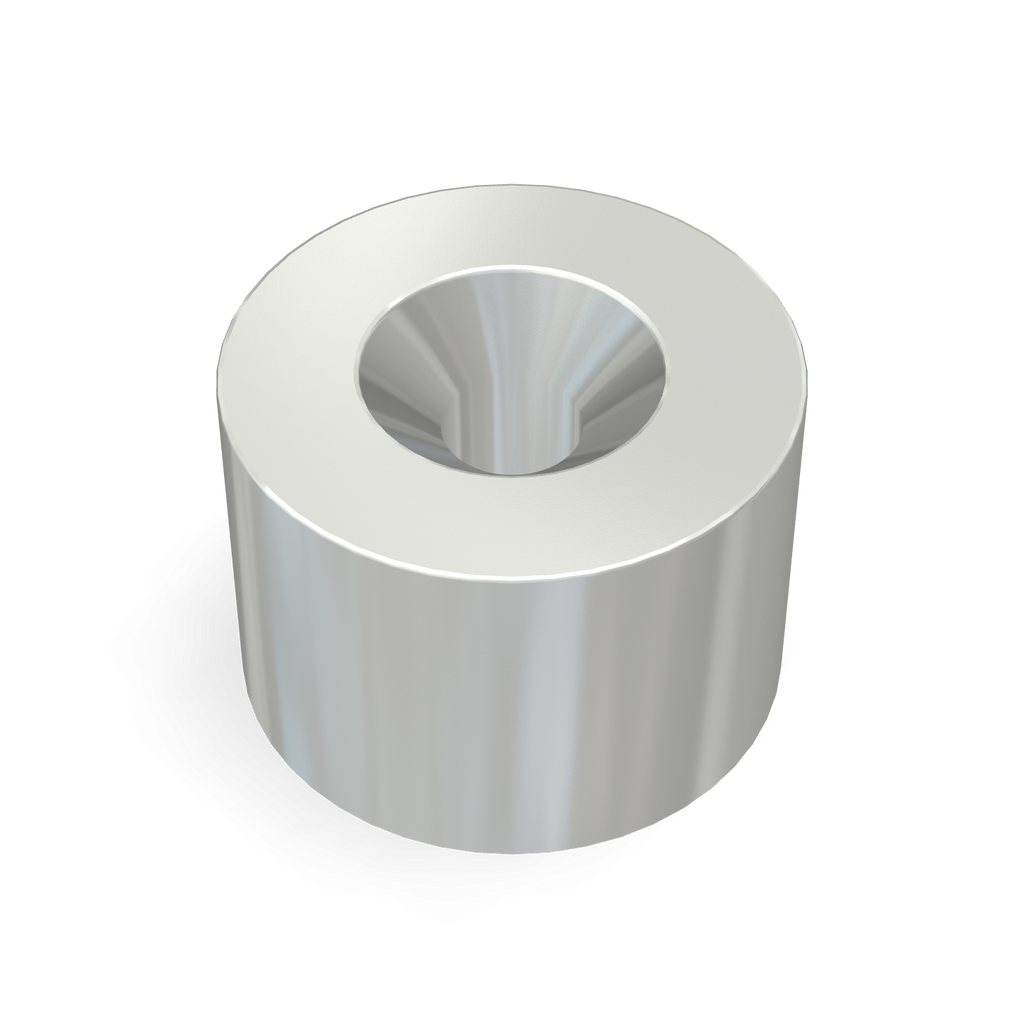

| name | Product Specifications | S.I. | C.G.S. |
|---|---|---|---|
| shape | |||
| Outer Diameter | D | 13mm | 1.3cm |
| omission | S | 6.7 mm | 0.67 cm |
| Inner Diameter | ID | 3.2mm | 0.32cm |
| Height | H | 9mm | 0.9 cm |
| screw | M | 3mm | 0.3cm |

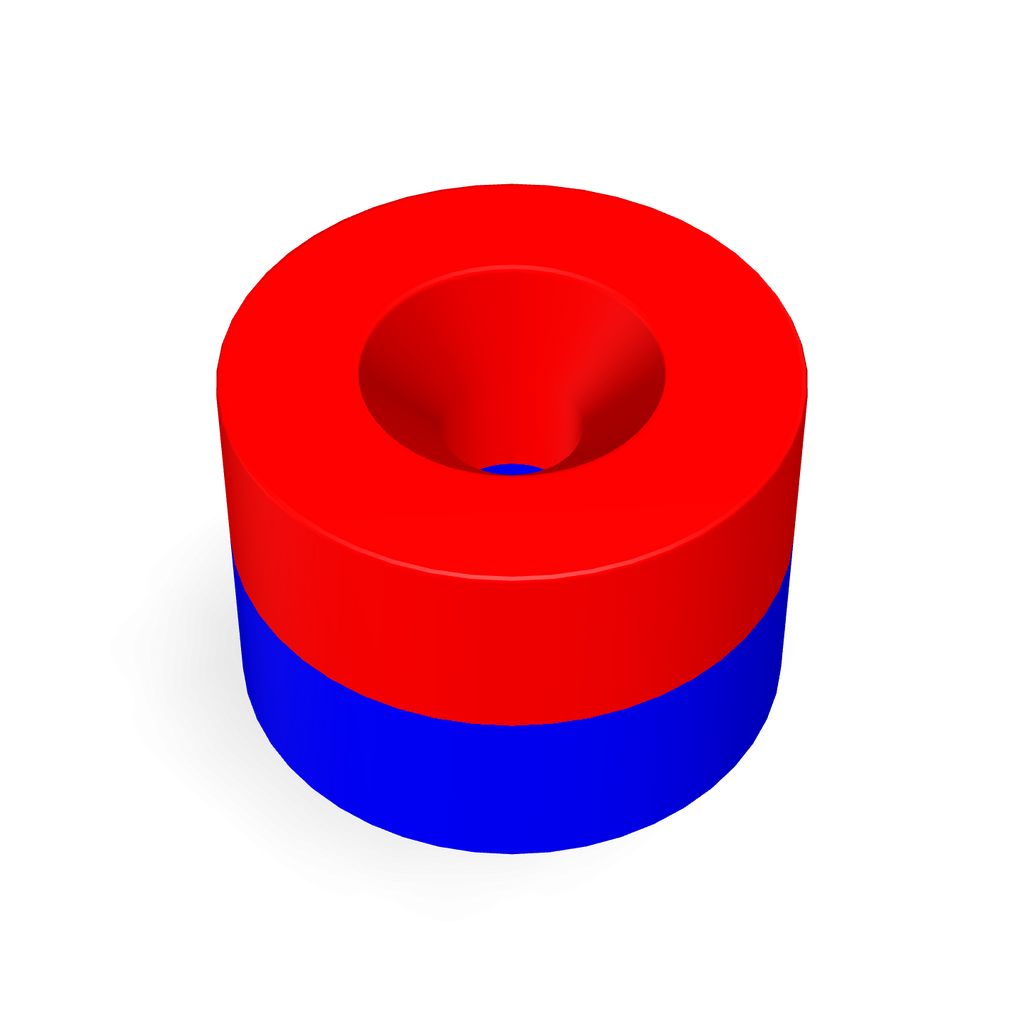

| Magnetization direction | M | Axial direction | |
| surface treatment | NiCuNi | 12 μm | - |
| magnetic properties | |||
| Surface magnetic flux density | B | 461.6 mT | 4616 Gauss |
| Suction power Adsorption power |
F | 4.5 kgf | 4502 gf |
| Operating point magnetic flux density |
Bd | 871 mT | 8710 Gauss |
| Total Flux | φo | 0.00010861 Wb | 10861 Mx |
| permeance coefficient | PC | 2.82 Pc | - |
| Upper limit temperature | Tw | 100 ℃ | 212 °F |
| Material property | |||
| Material symbol | neodymium | 35 | |
| Residual magnetic flux density | Br | 1170-1220mT | 11.7-12.2 kg |
| Coercive force | Hcb | ≧868 kA/m | ≧10.9 kOe |
| Intrinsic coercivity | Hcj | ≧955 kA/m | ≧12 kOe |
| maximum energy product | BH | 263-287 kj/m3 | 33-36 MGOe |
| temperature coefficient | Br | -0.12 %/℃ | 31.78 %/°F |
| Hcj | -0.55 %/℃ | 31.01 %/°F | |
| Heatproof temperature | Tw | ≦80 ℃ | <= 176 °F |
| Curie temperature | Tc | 310 ℃ | 590 °F |
| density | ρ | 7.5 kg/m3 | - |
| weight | Net | 0.00841 kg | 8.41 g |
| remarks | |||
| REACH RoHS Directive | |||
Warning
This product is not a toy and is unsuitable for children. Designed for scientific and industrial use, it contains strong Neodymium magnets that can be harmful if swallowed. These magnets are brittle and may chip or break upon impact. Handle with care. Please review the Warnings page before ordering.
