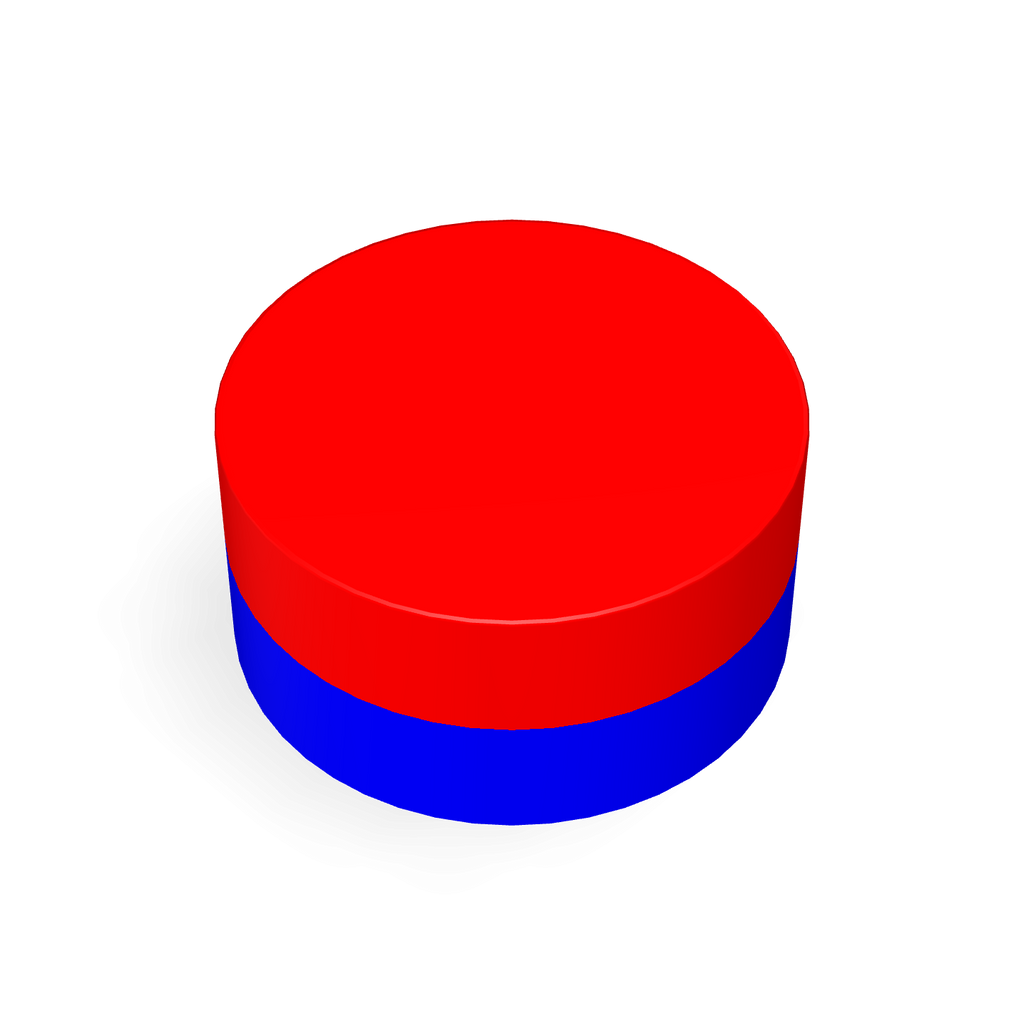

Neodymium Disc Magnet Φ2.0mm Polarity
Neodymium Disc Magnet Φ2.0mm Drawing
Neodymium Disc Magnet Φ2.0mm x 0.7mm
Neodymium Disc Magnet Φ2.0mm x 0.8mm
Neodymium Disc Magnet Φ2.0mm x 1mm
Neodymium Disc Magnet Φ2.0mm x 19mm

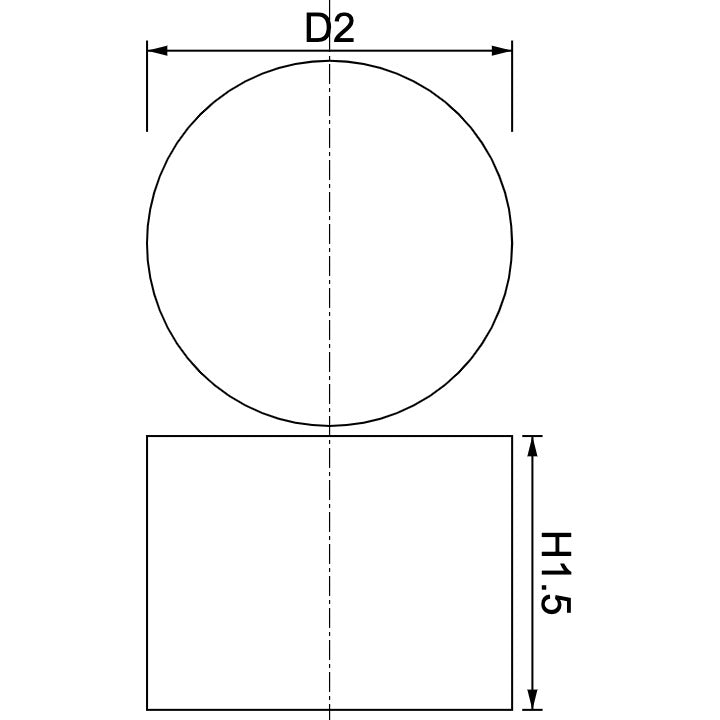

Neodymium Disc Magnet Φ2.0mm x 1.5mm
Neodymium Disc Magnet Φ2.0mm x 2mm
Neodymium Disc Magnet Φ2.0mm x 2.5mm
Neodymium Disc Magnet Φ2.0mm x 3mm

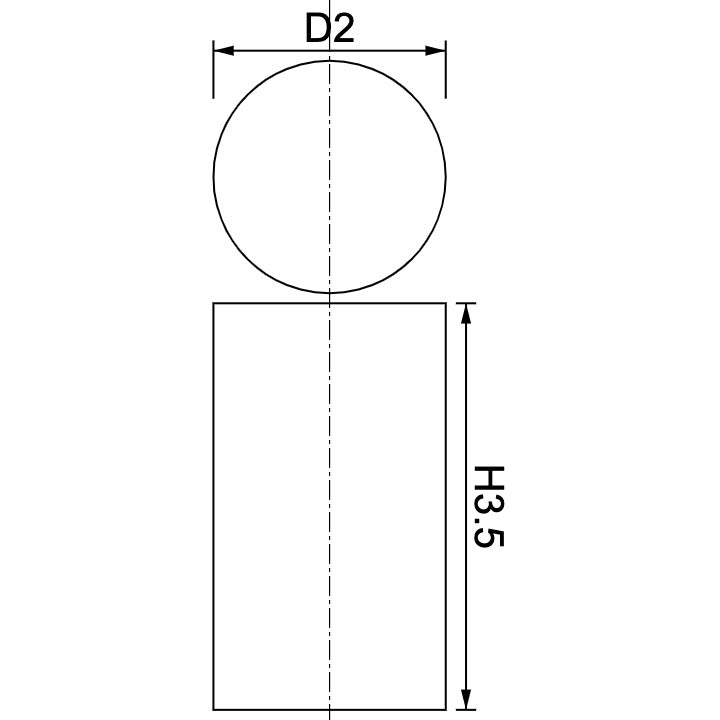

Neodymium Disc Magnet Φ2.0mm x 3.5mm
Neodymium Disc Magnet Φ2.0mm x 4mm

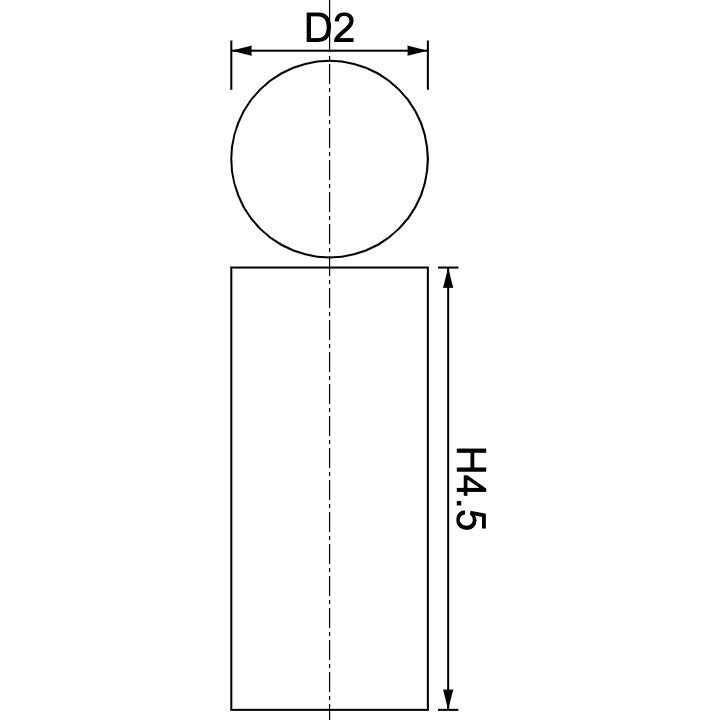

Neodymium Disc Magnet Φ2.0mm x 4.5mm
Neodymium Disc Magnet Φ2.0mm x 5mm
Neodymium Disc Magnet Φ2.0mm x 5.5mm
Neodymium Disc Magnet Φ2.0mm x 6mm

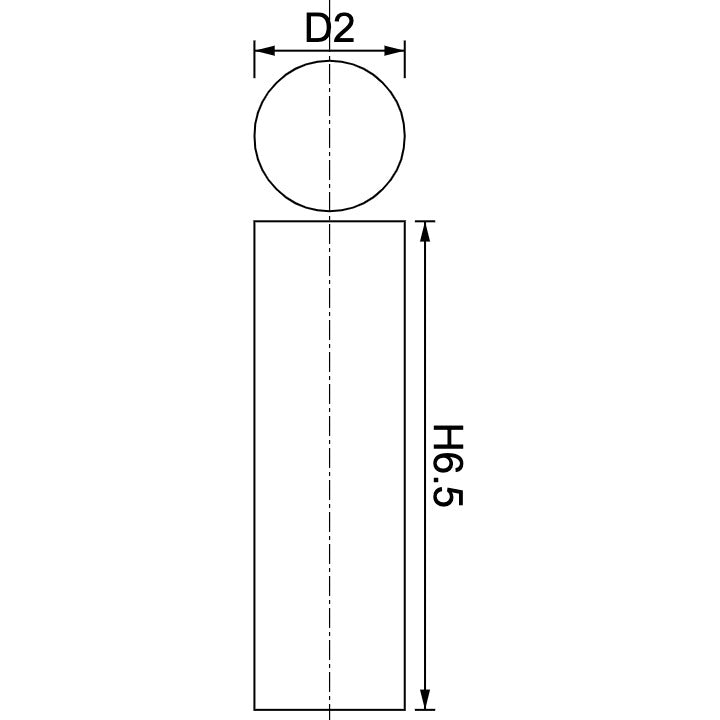

Neodymium Disc Magnet Φ2.0mm x 6.5mm
Neodymium Disc Magnet Φ2.0mm x 7mm
Neodymium Disc Magnet Φ2.0mm x 7.5mm
Neodymium Disc Magnet Φ2.0mm x 5mm
Neodymium Disc Magnet Φ2.0mm x 8.5mm

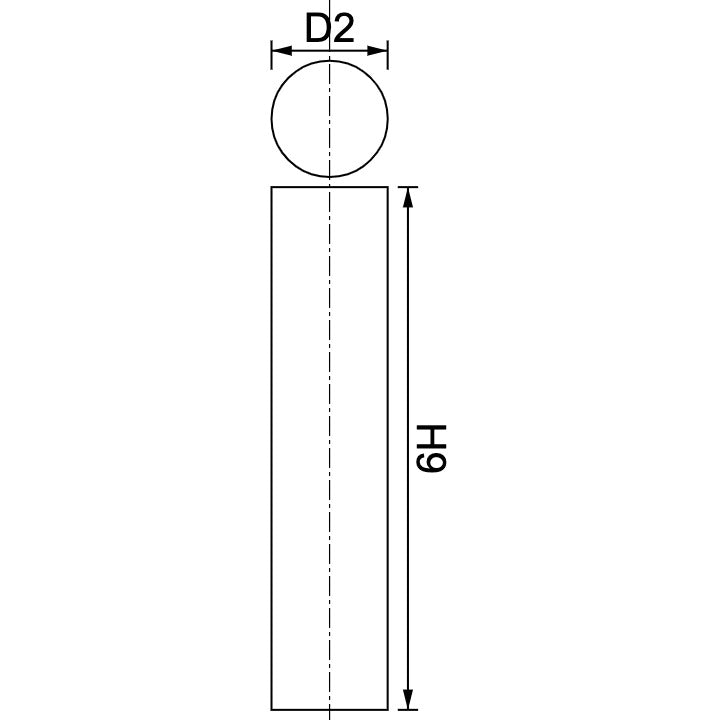

Neodymium Disc Magnet Φ2.0mm x 9mm
Neodymium Disc Magnet Φ2.0mm x 9.5mm
Neodymium Disc Magnet Φ2.0mm x 10mm
Neodymium Disc Magnet Φ2.0mm x 30mm
Roll over image to zoom in Click on image to zoom
Neodymium Disc Magnet Φ2.0mmNeodymium Disc Magnet Φ2.0mm PolarityNeodymium Disc Magnet Φ2.0mm DrawingNeodymium Disc Magnet Φ2.0mm x 0.7mmNeodymium Disc Magnet Φ2.0mm x 0.8mmNeodymium Disc Magnet Φ2.0mm x 1mmNeodymium Disc Magnet Φ2.0mm x 19mmNeodymium Disc Magnet Φ2.0mm x 1.5mmNeodymium Disc Magnet Φ2.0mm x 2mmNeodymium Disc Magnet Φ2.0mm x 2.5mmNeodymium Disc Magnet Φ2.0mm x 3mmNeodymium Disc Magnet Φ2.0mm x 3.5mmNeodymium Disc Magnet Φ2.0mm x 4mmNeodymium Disc Magnet Φ2.0mm x 4.5mmNeodymium Disc Magnet Φ2.0mm x 5mmNeodymium Disc Magnet Φ2.0mm x 5.5mmNeodymium Disc Magnet Φ2.0mm x 6mmNeodymium Disc Magnet Φ2.0mm x 6.5mmNeodymium Disc Magnet Φ2.0mm x 7mmNeodymium Disc Magnet Φ2.0mm x 7.5mmNeodymium Disc Magnet Φ2.0mm x 5mmNeodymium Disc Magnet Φ2.0mm x 8.5mmNeodymium Disc Magnet Φ2.0mm x 9mmNeodymium Disc Magnet Φ2.0mm x 9.5mmNeodymium Disc Magnet Φ2.0mm x 10mmNeodymium Disc Magnet Φ2.0mm x 30mm

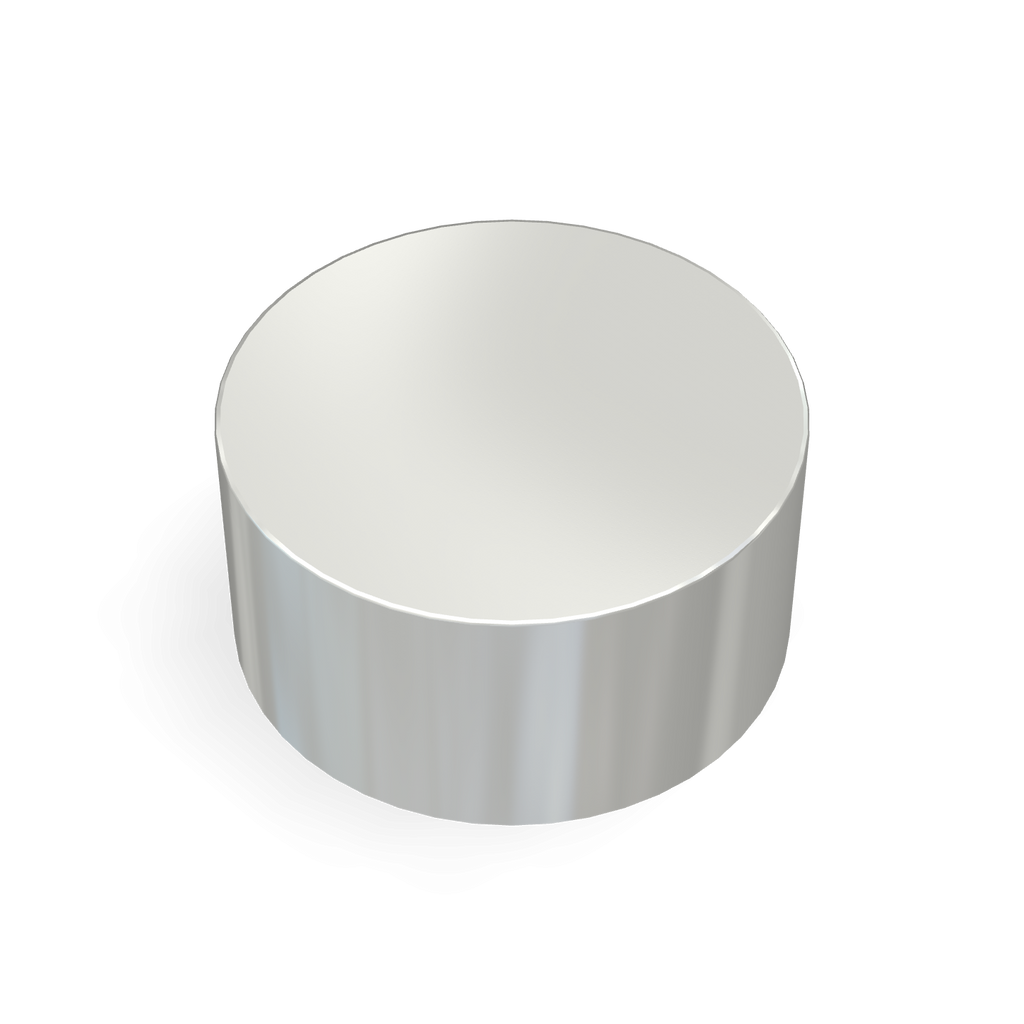

Neodymium Disc Magnet Ø2mm

SKU: ND0306
Height: 0.5mm
Price:
$0.51
Stock:
In stock (730 units), ready to be shipped

Description

Neodymium Disc Magnet

Diameter: 2mm (0.08")

Material: Neodymium (NdFeB)

Coating: Nickel-plated

This neodymium disc magnet is available in various height options and delivers exceptional strength and precision for industrial applications. Designed for reliability, its compact form factor and corrosion-resistant coating ensure durability in demanding environments. It is ideal for use in manufacturing, electronics, and specialized machinery. Contact us for bulk orders!

For detailed specifications, please refer to the Product Specification PDF files available for each product type.

Product Dimension, Magnetic Flux Density, and Adsorption Force:

Code DxH Magnet Flux Density B Adsorption force F Product Specifications

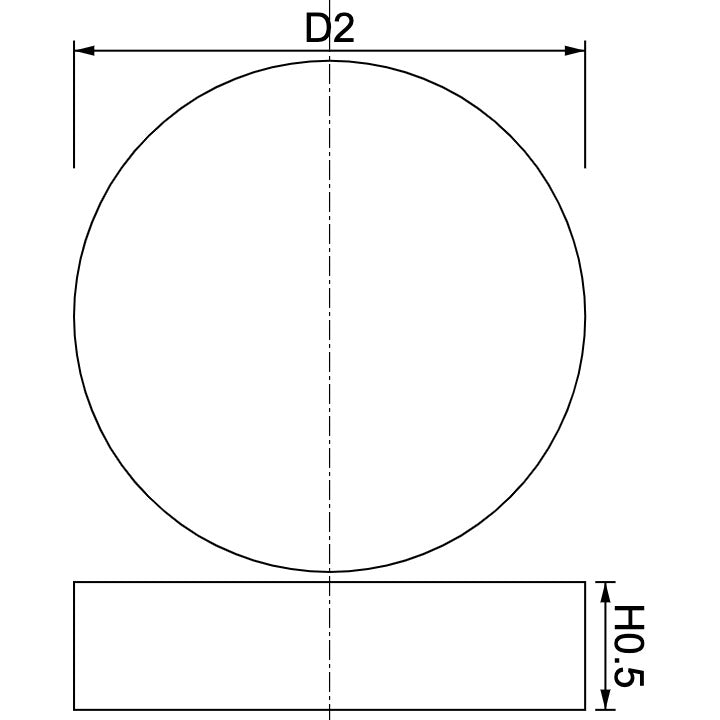

ND0306 Φ2mm x 0.5mm 158.2 mT 0.05kgf PDF

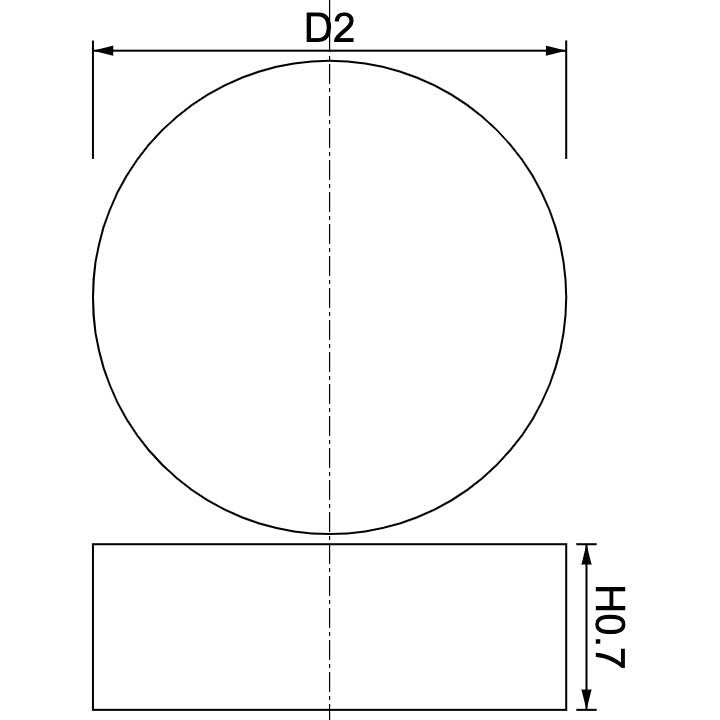

ND1140 Φ2mm x 0.7mm 202.8 mT 0.059kgf PDF

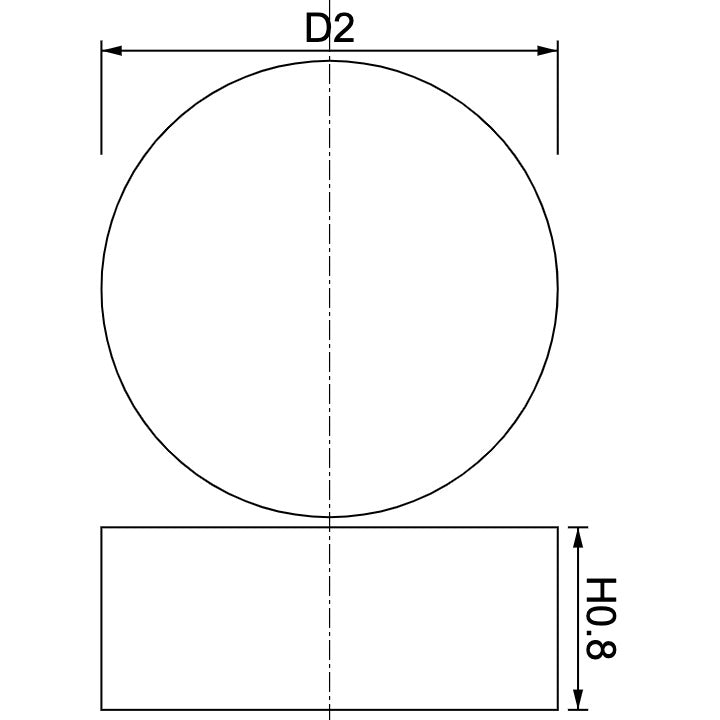

ND0094 Φ2mm x 0.8mm 221 mT 0.067kgf PDF
ND0074 Φ2mm x 1mm 250.1 mT 0.086kgf PDF
ND0383 Φ2mm x 1.5mm 294.3 mT 0.119kgf PDF

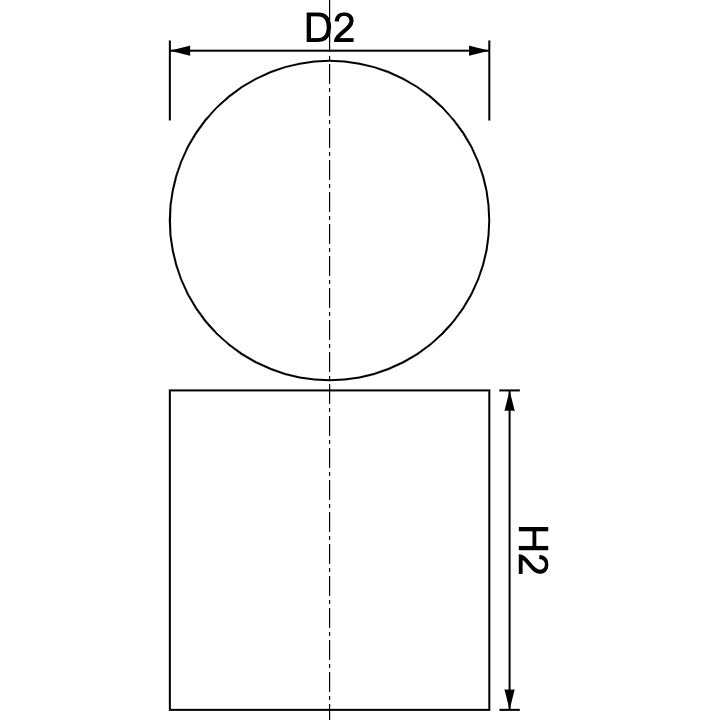

ND0001 Φ2mm x 2mm 316.4 mT 0.138kgf PDF

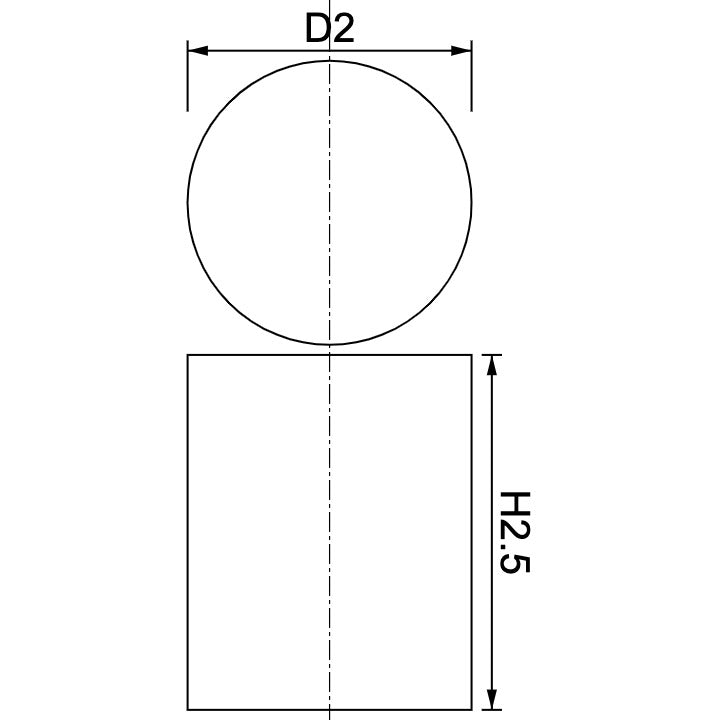

ND0384 Φ2mm x 2.5mm 328.4 mT 0.148kgf PDF

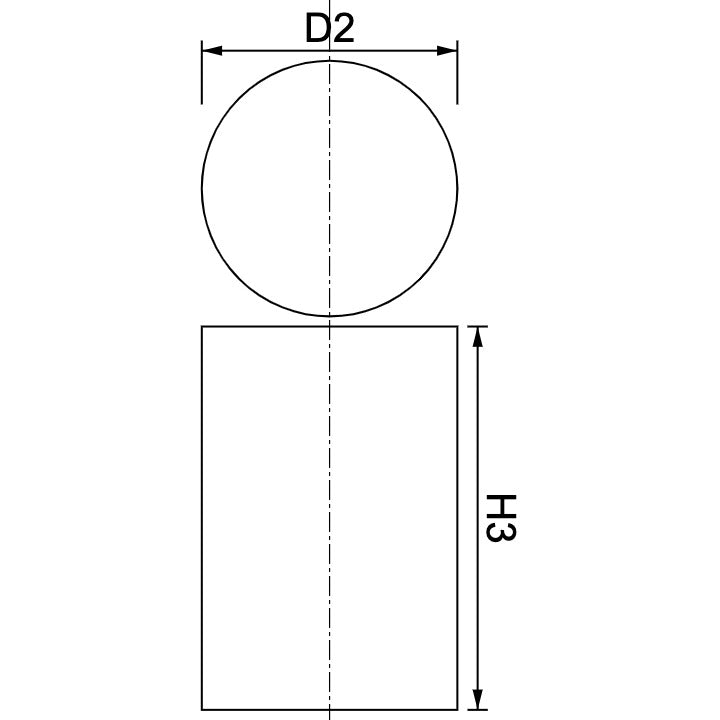

ND0002 Φ2mm x 3mm 335.6 mT 0.155kgf PDF
ND0385 Φ2mm x 3.5mm 340.1 mT 0.159 kgf PDF
ND0075 Φ2mm x 4mm 343.2 mT 0.162kgf PDF
ND0386 Φ2mm x 4.5mm 345.3 mT 0.164kgf PDF

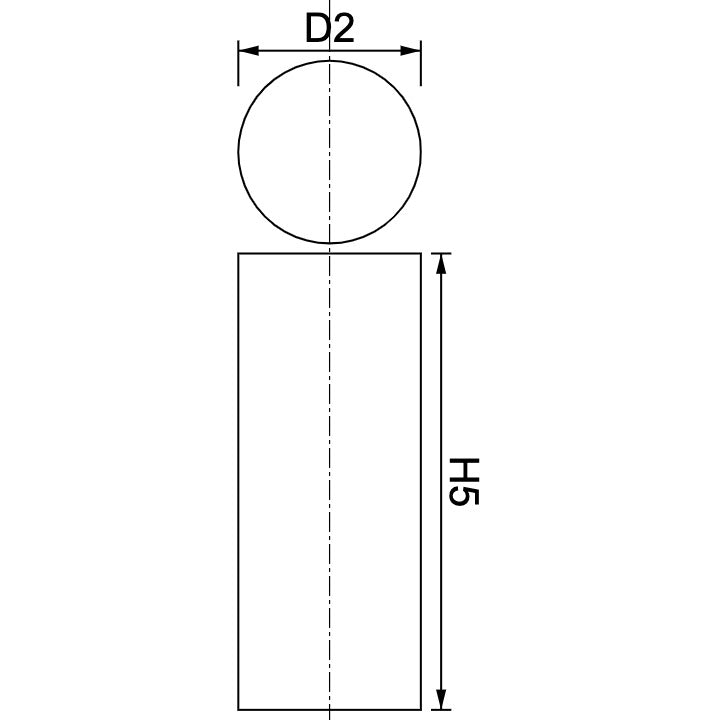

ND0076 Φ2mm x 5mm 346.9 mT 0.165kgf PDF

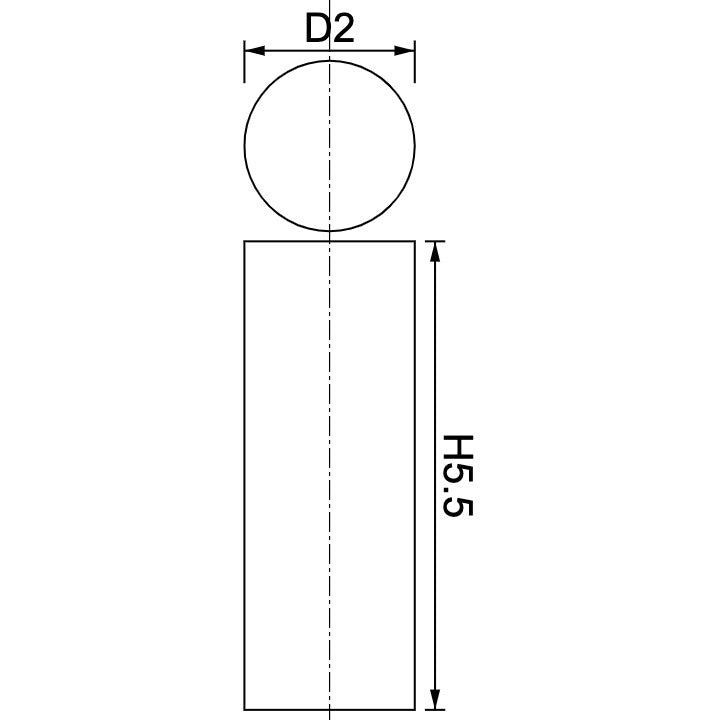

ND0387 Φ2mm x 5.5mm 348 mT 0.167kgf PDF

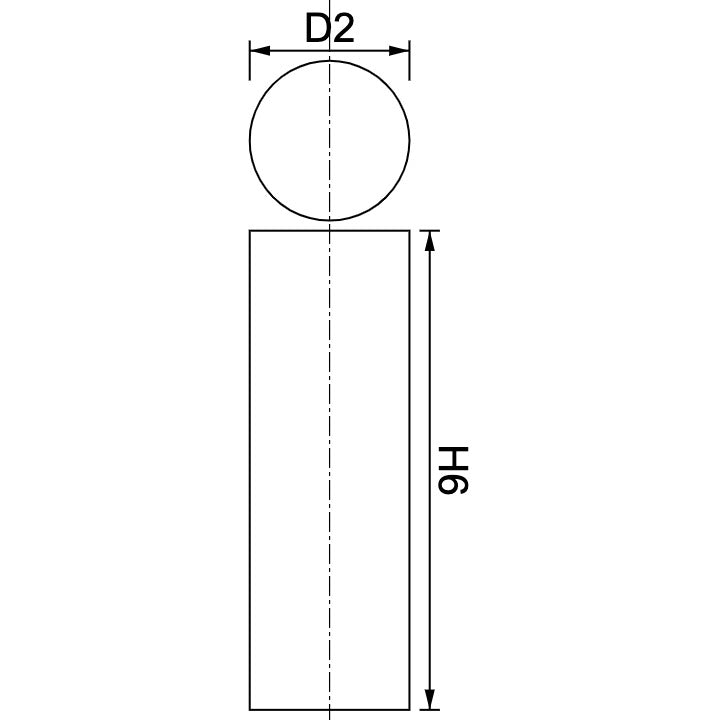

ND0077 Φ2mm x 6mm 348.9 mT 0.167kgf PDF
ND0389 Φ2mm x 6.5mm 349.6 mT 0.168kgf PDF

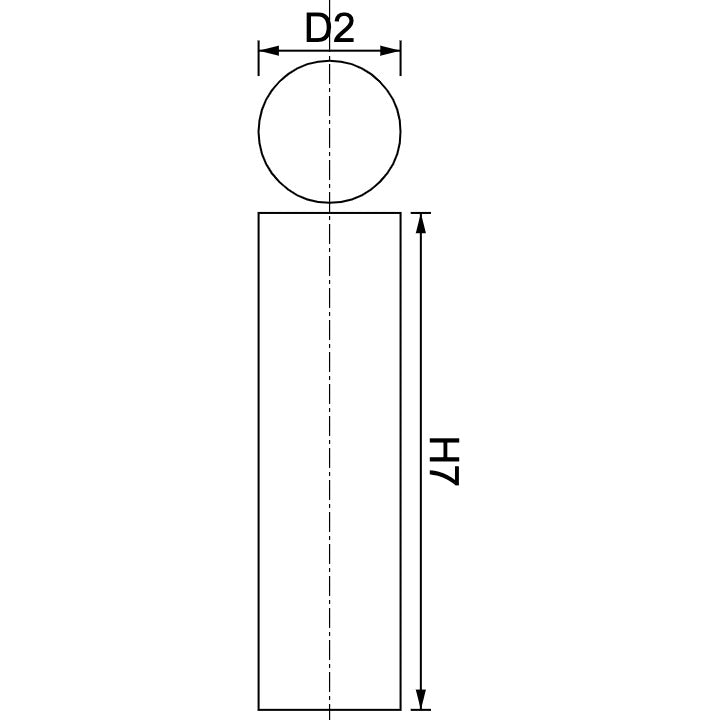

ND0115 Φ2mm x 7mm 350.2 mT 0.169kgf PDF

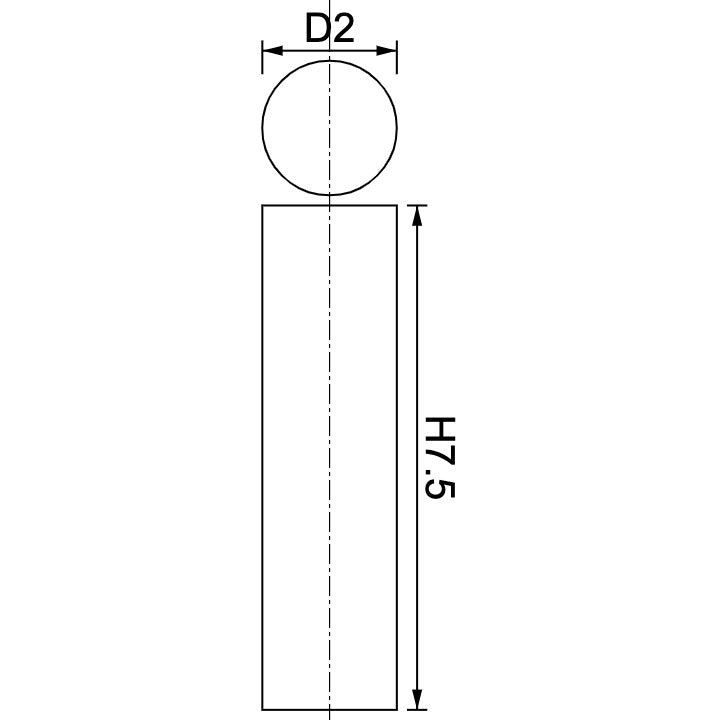

ND0390 Φ2mm x 7.5mm 350.6 mT 0.169kgf PDF
ND0117 Φ2mm x 8mm 351 mT 0.169kgf PDF

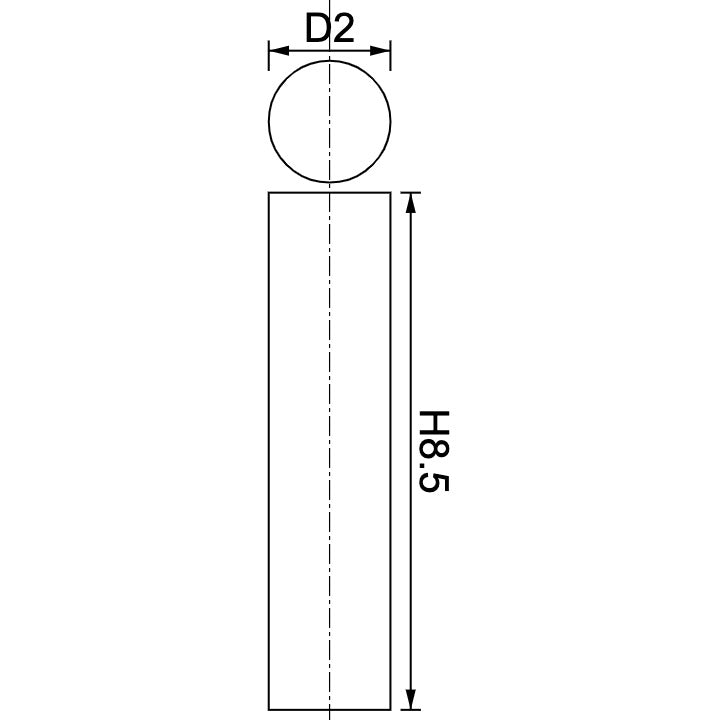

ND0391 Φ2mm x 8.5mm 351.3 mT 0.17kgf PDF
ND0119 Φ2mm x 9mm 351.6 mT 0.17kgf PDF

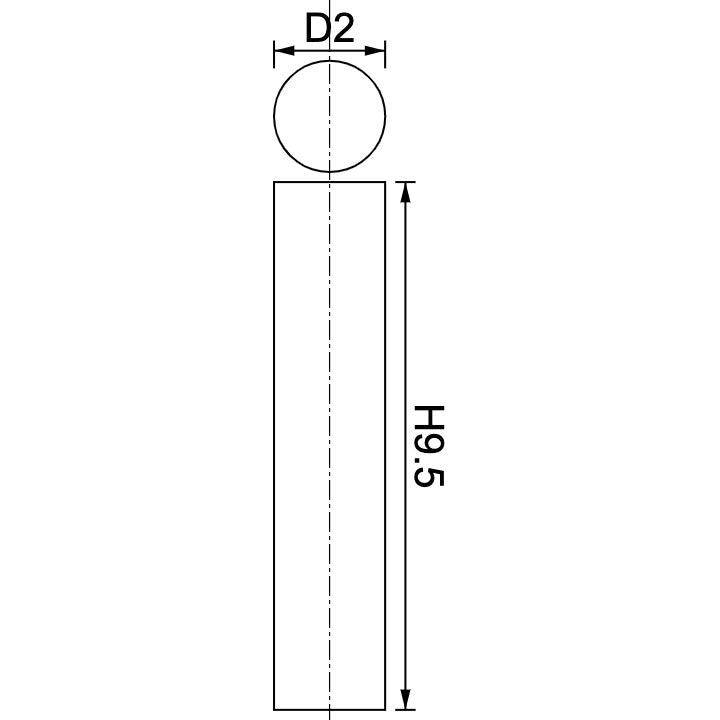

ND0392 Φ2mm x 9.5mm 351.8 mT 0.17kgf PDF

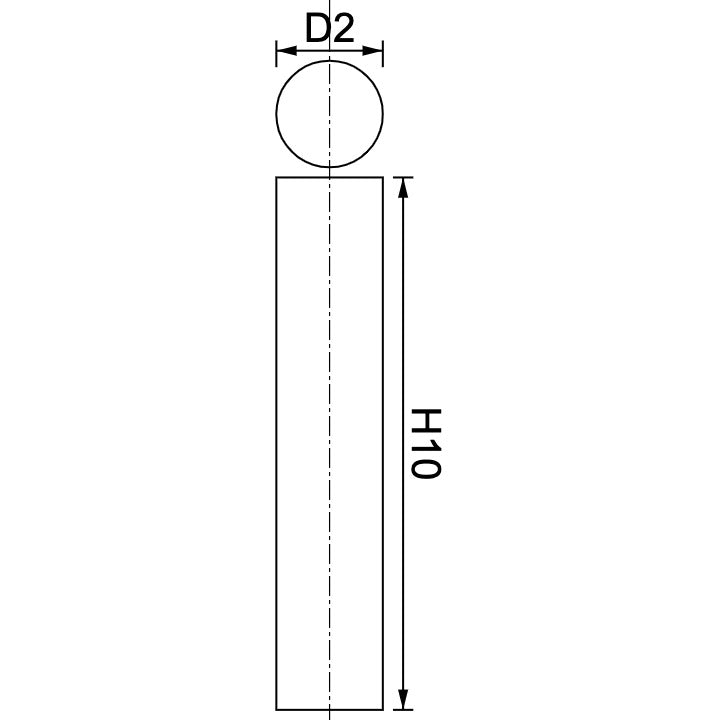

ND0078 Φ2mm x 10mm 352 mT 0.17kgf PDF

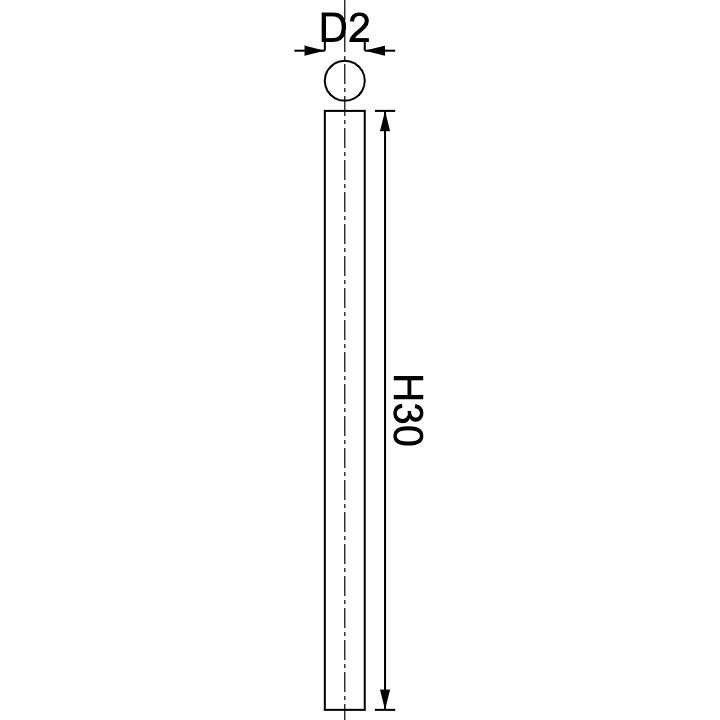

ND1150 Φ2mm x 30mm 353.5 mT 0.172kgf PDF

Warning

This product is not a toy and is unsuitable for children. Designed for scientific and industrial use, it contains strong Neodymium magnets that can be harmful if swallowed. These magnets are brittle and may chip or break upon impact. Handle with care. Please review the Warnings page before ordering.
