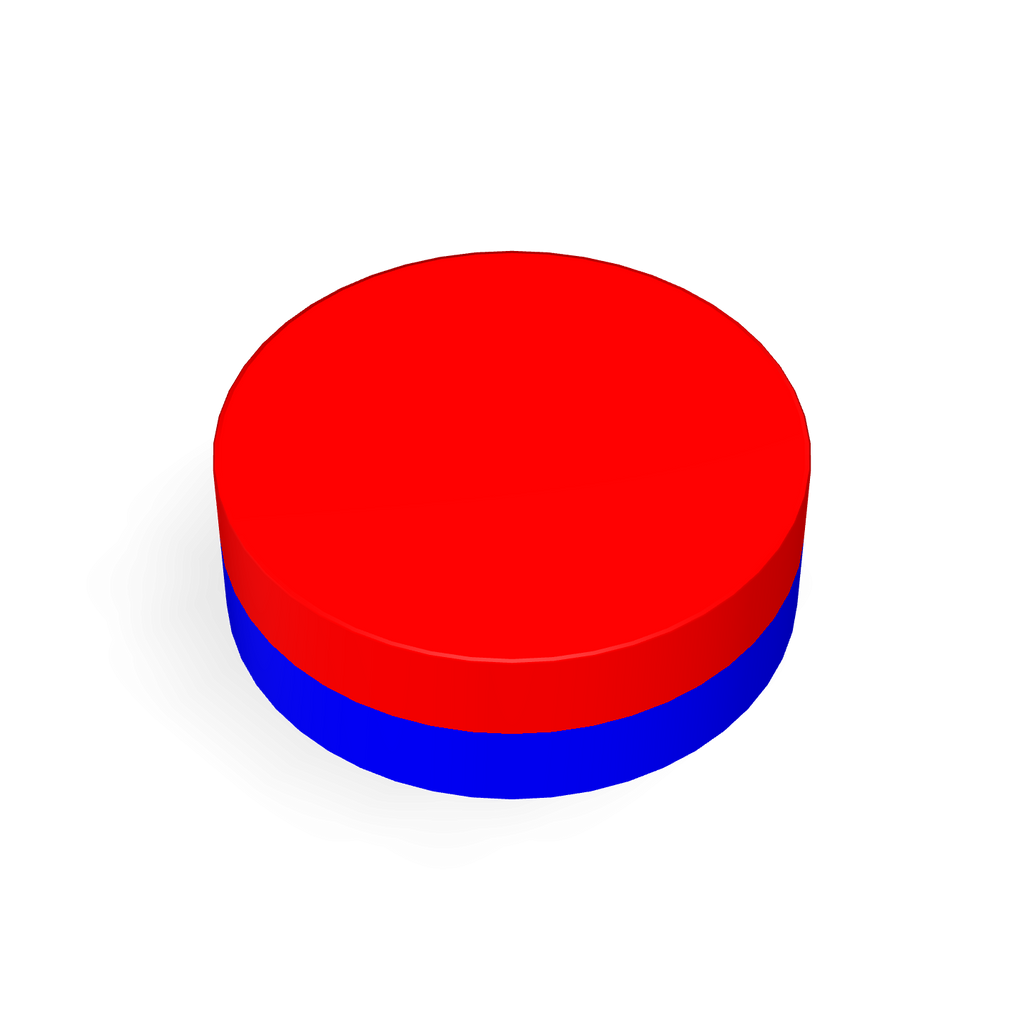

Neodymium Disc Magnet Φ3.0mm Polarity
Neodymium Disc Magnet Φ3.0mm x 0.5mm
Neodymium Disc Magnet Φ3.0mm x 1mm
Neodymium Disc Magnet Φ3.0mm x 1.5mm
Neodymium Disc Magnet Φ3mm x 2mm
Neodymium Disc Magnet Φ3mm x 2.5mm
Neodymium Disc Magnet Φ3mm x 3mm
Neodymium Disc Magnet Φ3mm x 3.5mm
Neodymium Disc Magnet Φ3mm x 4mm
Neodymium Disc Magnet Φ3mm x 4.5mm
Neodymium Disc Magnet Φ3mm x 5mm
Neodymium Disc Magnet Φ3mm x 5.5mm
Neodymium Disc Magnet Φ3mm x 6mm
Neodymium Disc Magnet Φ3mm x 6.5mm
Neodymium Disc Magnet Φ3mm x 7mm
Neodymium Disc Magnet Φ3mm x 7.5mm
Neodymium Disc Magnet Φ3mm x 8mm
Neodymium Disc Magnet Φ3mm x 9mm
Neodymium Disc Magnet Φ3mm x 10mm
Neodymium Disc Magnet Φ3mm x 15mm
Neodymium Disc Magnet Φ3mm x 20mm
Roll over image to zoom in Click on image to zoom
Neodymium Disc Magnet Φ3.0mmNeodymium Disc Magnet Φ3.0mm PolarityNeodymium Disc Magnet Φ3.0mm x 0.5mmNeodymium Disc Magnet Φ3.0mm x 1mmNeodymium Disc Magnet Φ3.0mm x 1.5mmNeodymium Disc Magnet Φ3mm x 2mmNeodymium Disc Magnet Φ3mm x 2.5mmNeodymium Disc Magnet Φ3mm x 3mmNeodymium Disc Magnet Φ3mm x 3.5mmNeodymium Disc Magnet Φ3mm x 4mmNeodymium Disc Magnet Φ3mm x 4.5mmNeodymium Disc Magnet Φ3mm x 5mmNeodymium Disc Magnet Φ3mm x 5.5mmNeodymium Disc Magnet Φ3mm x 6mmNeodymium Disc Magnet Φ3mm x 6.5mmNeodymium Disc Magnet Φ3mm x 7mmNeodymium Disc Magnet Φ3mm x 7.5mmNeodymium Disc Magnet Φ3mm x 8mmNeodymium Disc Magnet Φ3mm x 9mmNeodymium Disc Magnet Φ3mm x 10mmNeodymium Disc Magnet Φ3mm x 15mmNeodymium Disc Magnet Φ3mm x 20mm

Neodymium Disc Magnet Ø3mm

SKU: ND0307
Height: 0.5mm
Price:
$0.54 $0.59
Stock:
In stock (1460 units), ready to be shipped

Description

Neodymium Disc Magnet

Diameter: 3mm (0.12")

Material: Neodymium (NdFeB)

Coating: Nickel-plated

This neodymium disc magnet is available in various height options and delivers exceptional strength and precision for industrial applications. Designed for reliability, its compact form factor and corrosion-resistant coating ensure durability in demanding environments. It is ideal for use in manufacturing, electronics, and specialized machinery. Contact us for bulk orders!

For detailed specifications, please refer to the Product Specification PDF files available for each product type.

Product Dimension, Magnetic Flux Density, and Adsorption Force:

Code DxH Magnet Flux Density B Adsorption force F Product Specifications

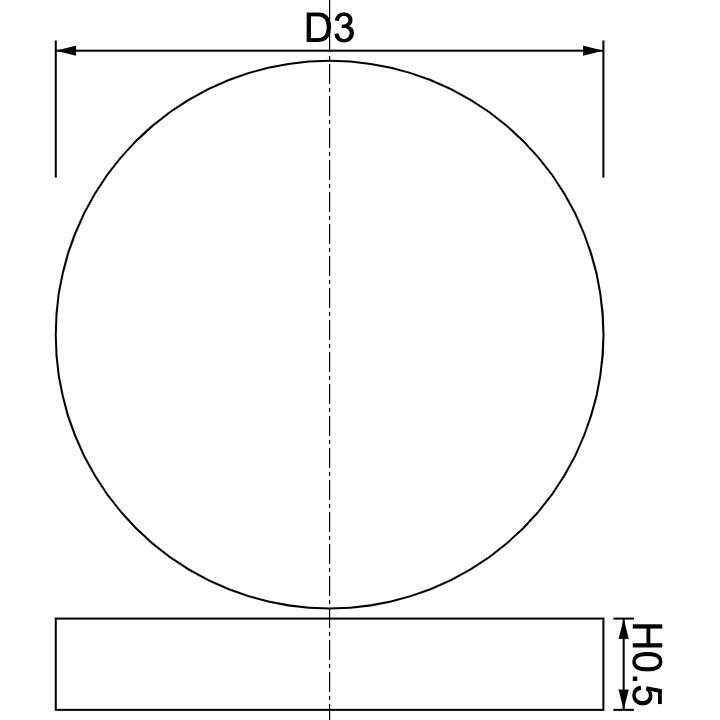

ND0307 Φ3mm x 0.5mm 135.1b mT 0.08kgf PDF
ND0095 Φ3mm x 0.8mm 201 mT 0.119kgf PDF

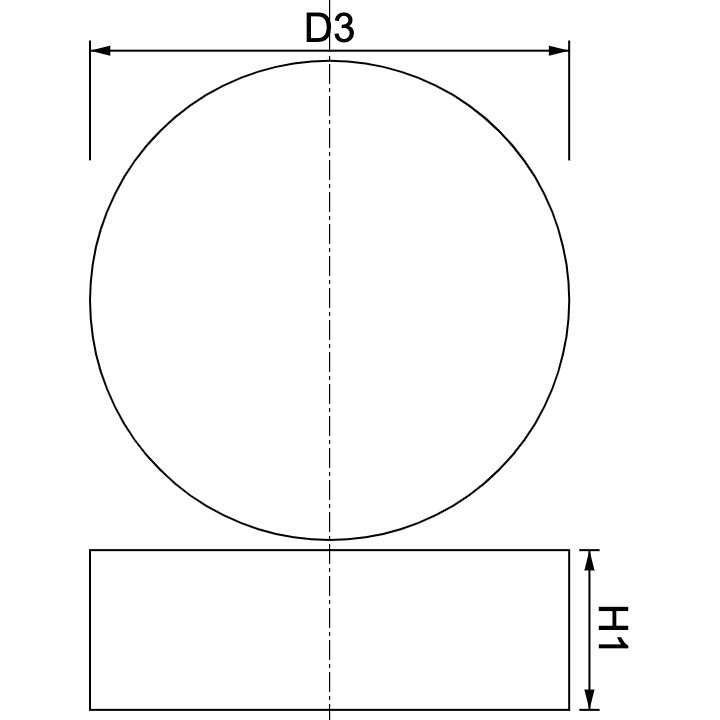

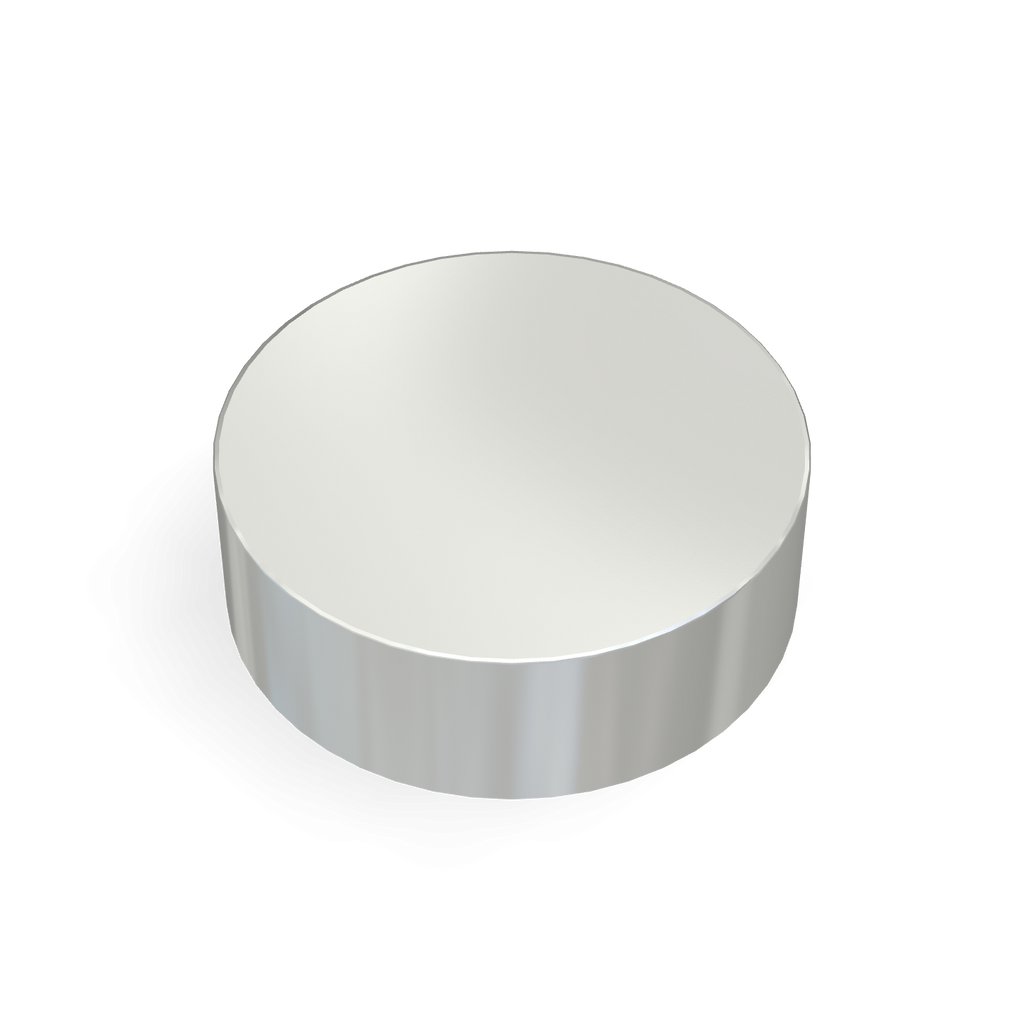

ND0046 Φ3mm x 1mm 237 mT 0.132kgf PDF
ND0894 Φ3mm x 1.2mm 266.9 mT 0.151kgf PDF

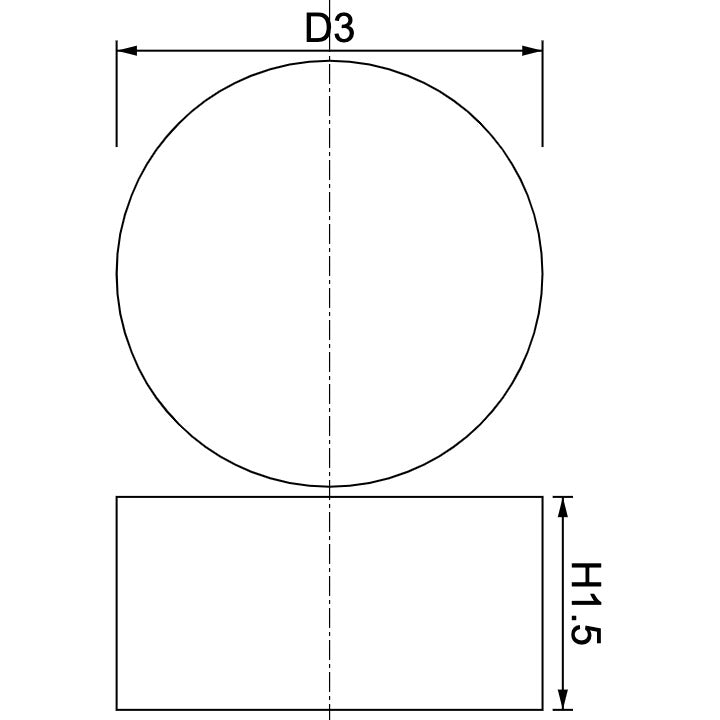

ND0047 Φ3mm x 1.5mm 302.1 mT 0.194kgf PDF

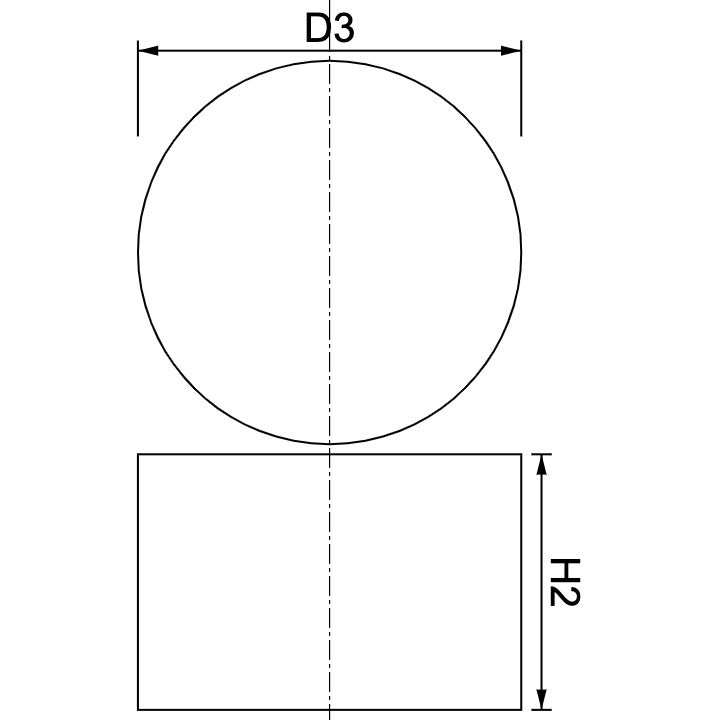

ND0003 Φ3mm x 2mm 341.8 mT 0.248kgf PDF

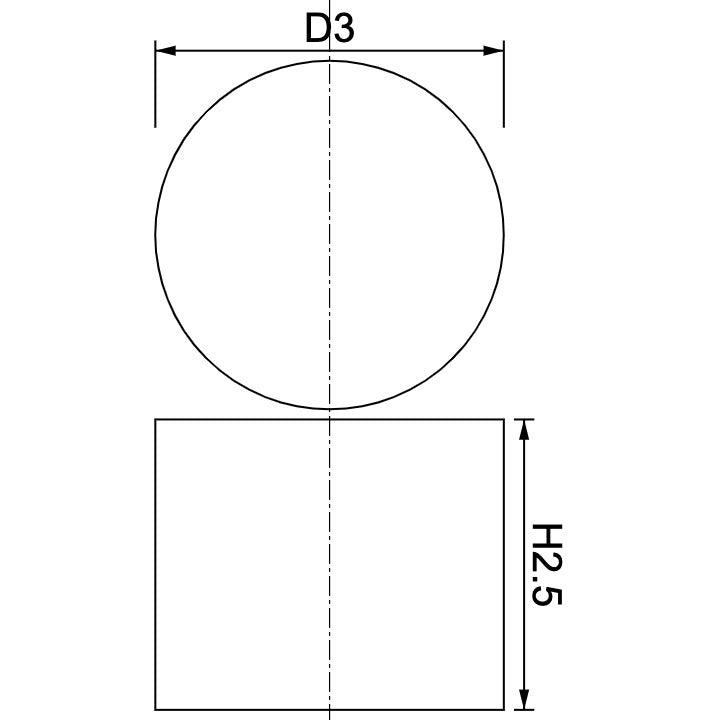

ND0048 Φ3mm x 2.5mm 366.3 mT 0.285kgf PDF

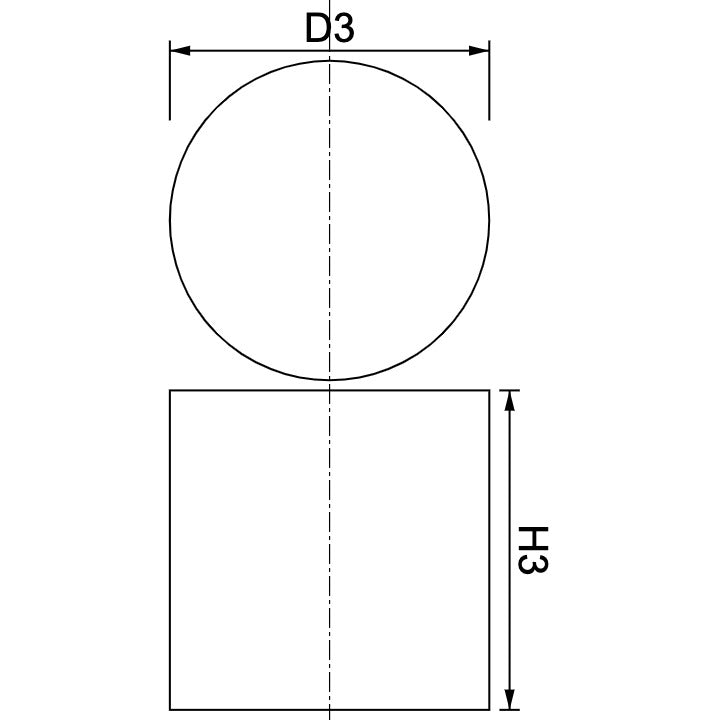

ND0004 Φ3mm x 3mm 382.1 mT 0.31kgf PDF
ND0311 Φ3mm x 3mm 382.1 mT 0.31kgf PDF

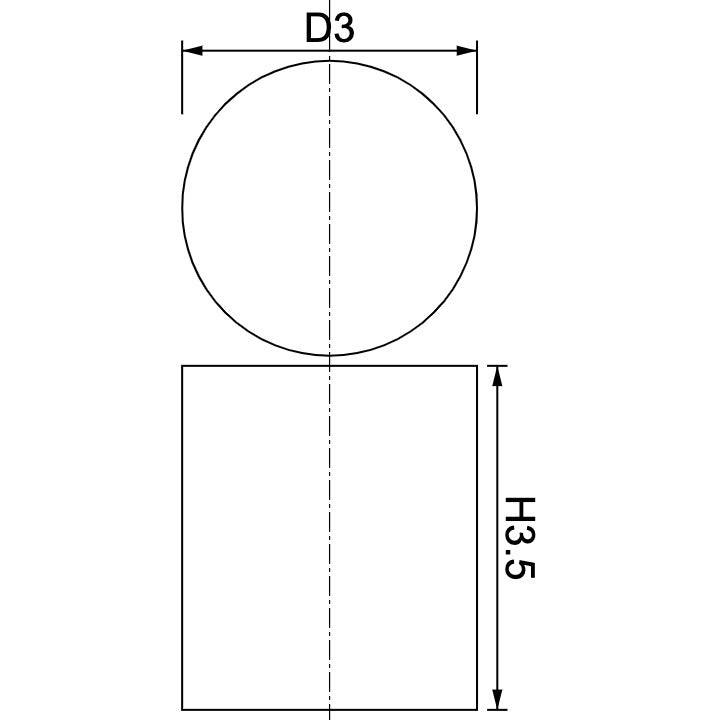

ND0393 Φ3mm x 3.5mm 392.7 mT 0.328kgf PDF

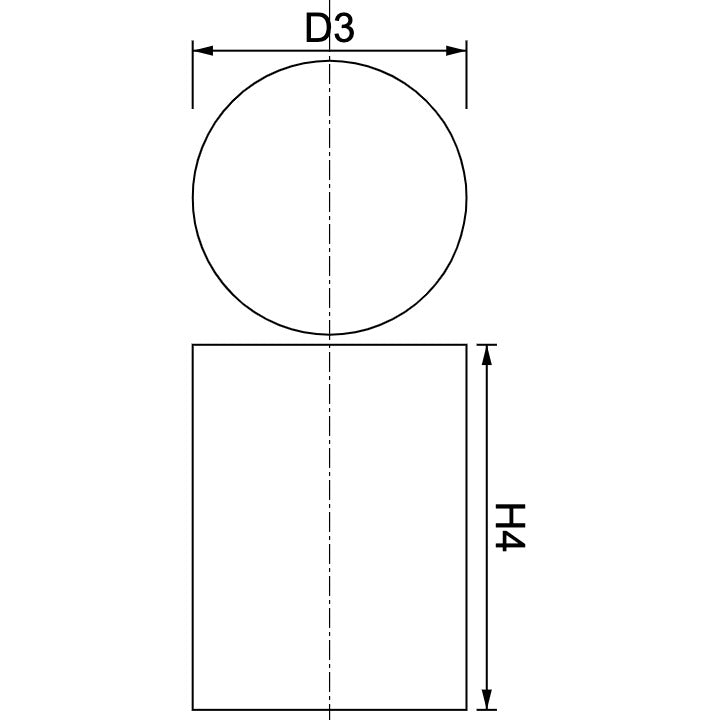

ND0005 Φ3mm x 4mm 400mT 0.34kgf PDF

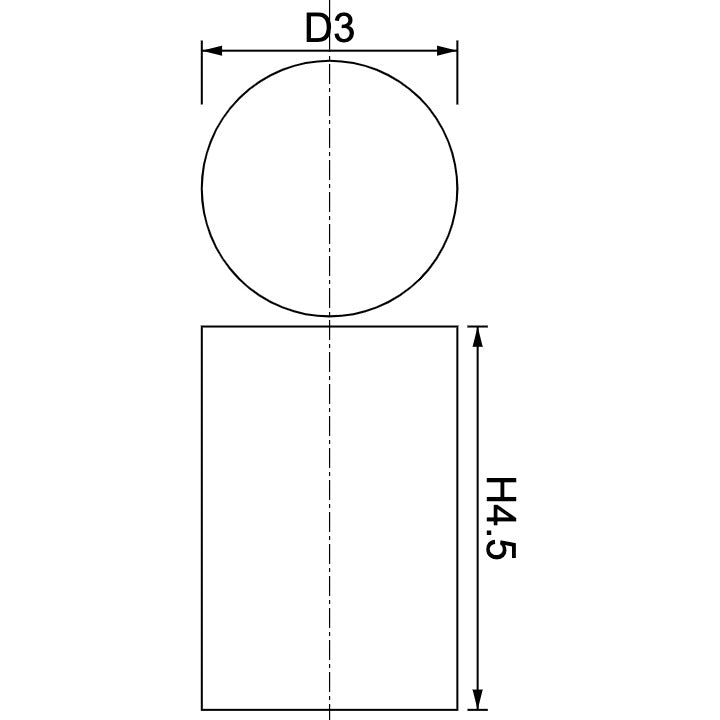

ND0394 Φ3mm x 4.5mm 405.3 mT 0.349kgf PDF

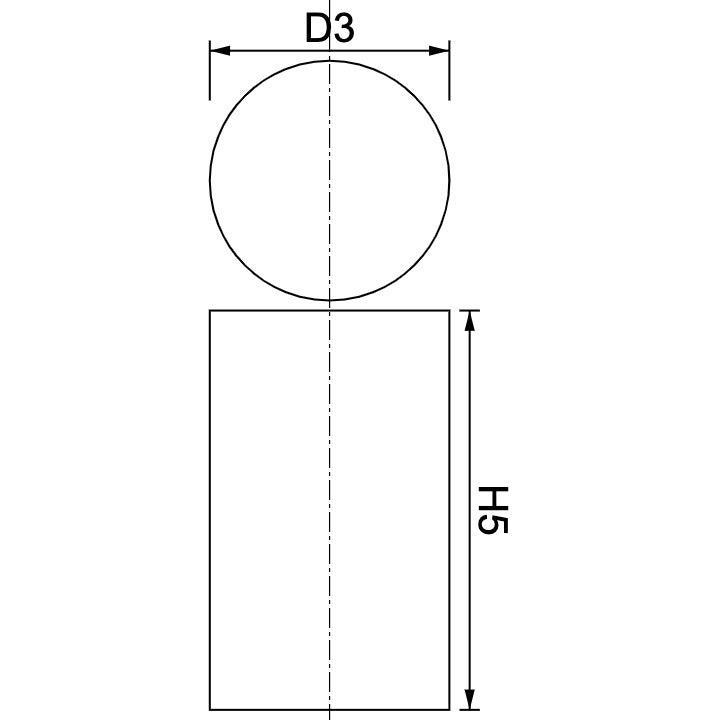

ND0049 Φ3mm x 5mm 409.2 mT 0.356kgf PDF

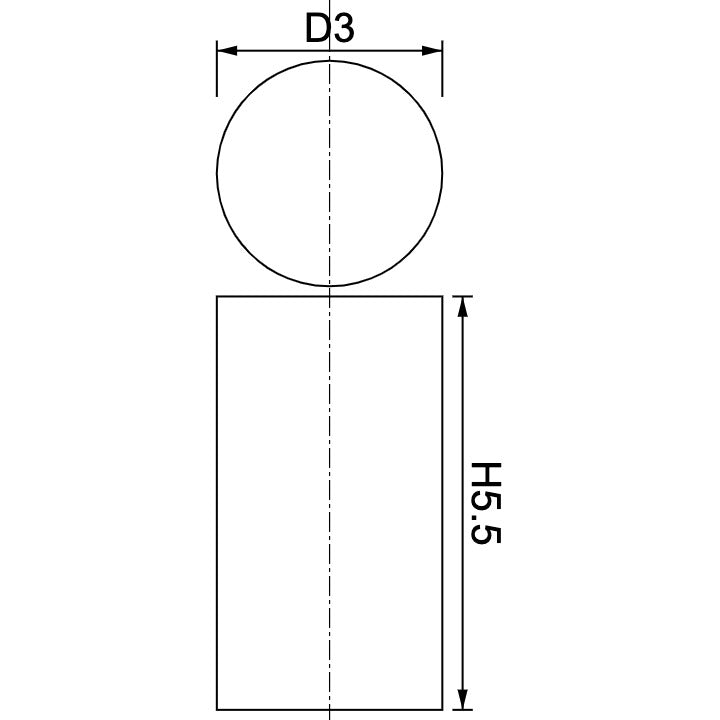

ND0395 Φ3mm x 5.5mm 412.2 mT 0.361kgf PDF

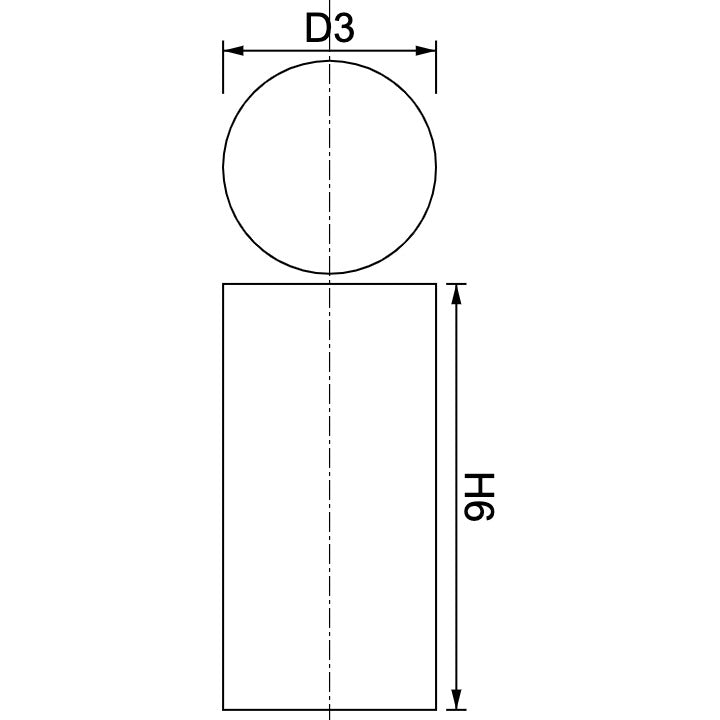

ND0050 Φ3mm x 6mm 414.5 mT 0.365kgf PDF

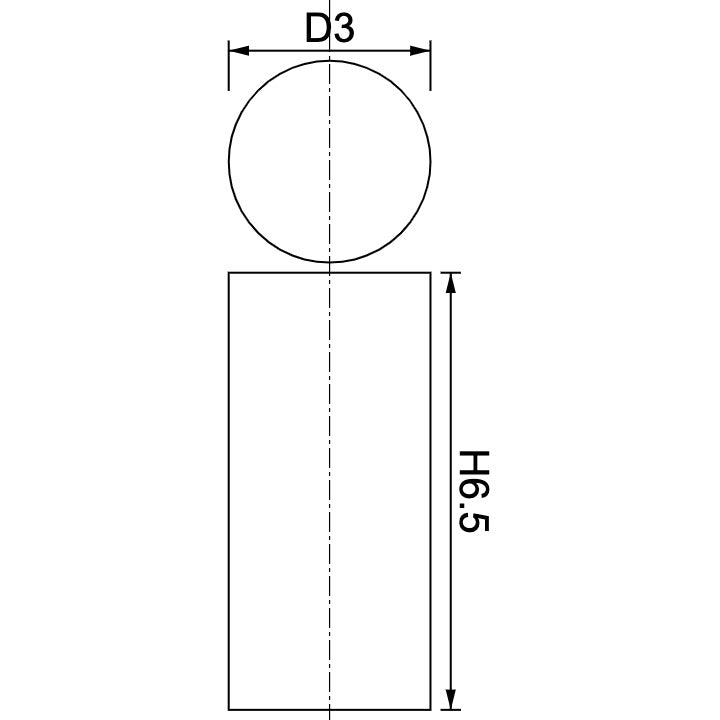

ND0396 Φ3mm x 6.5mm 416.3 mT 0.368kgf PDF
ND0121 Φ3mm x 7mm 417.7 mT 0.371kgf PDF
ND0397 Φ3mm x 7.5mm 418.9 mT 0.373kgf PDF

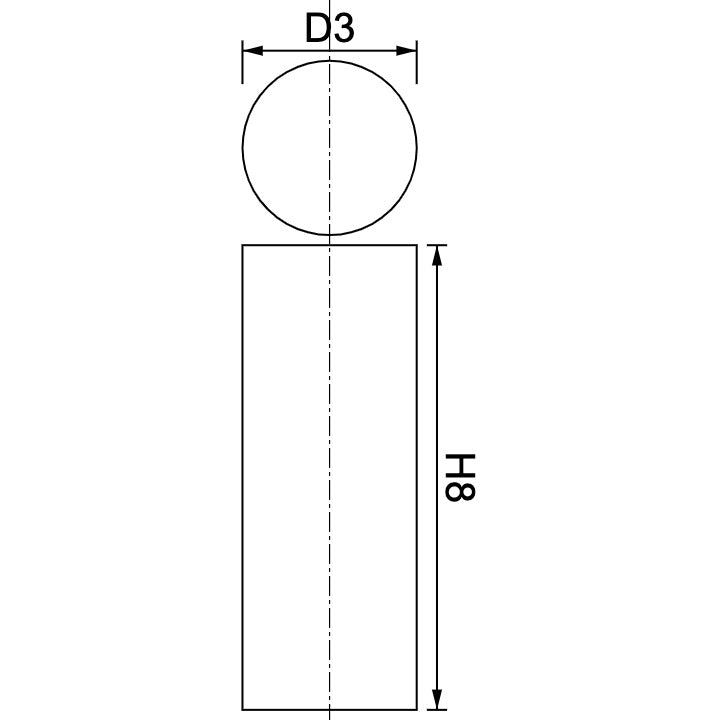

ND0123 Φ3mm x 8mm 419.9 mT 0.375kgf PDF

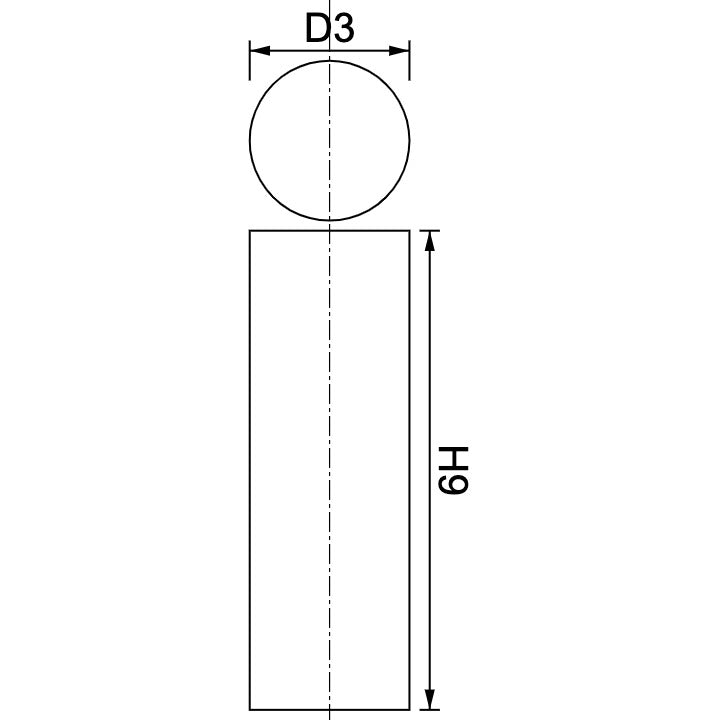

ND0125 Φ3mm x 9mm 421.4 mT 0.377kgf PDF

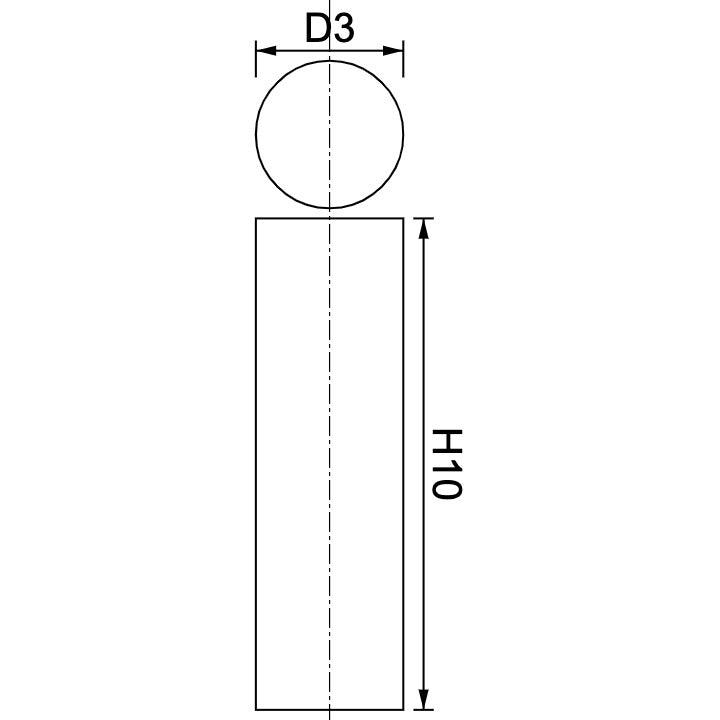

ND0034 Φ3mm x 10mm 422.5 mT 0.379kgf PDF

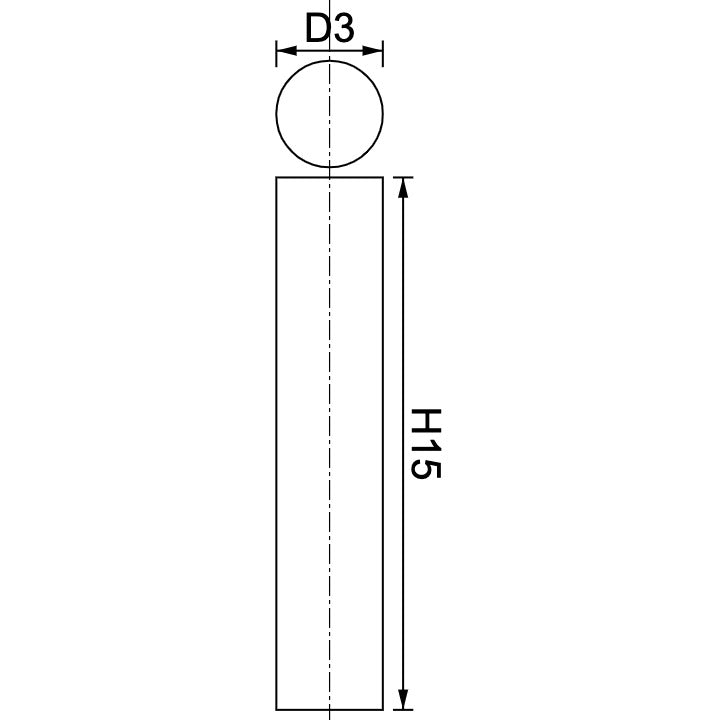

ND0879 Φ3mm x 15mm 425.1 mT 0.384kgf PDF
ND0319 Φ3mm x 19mm 425.9 mT 0.385kgf PDF

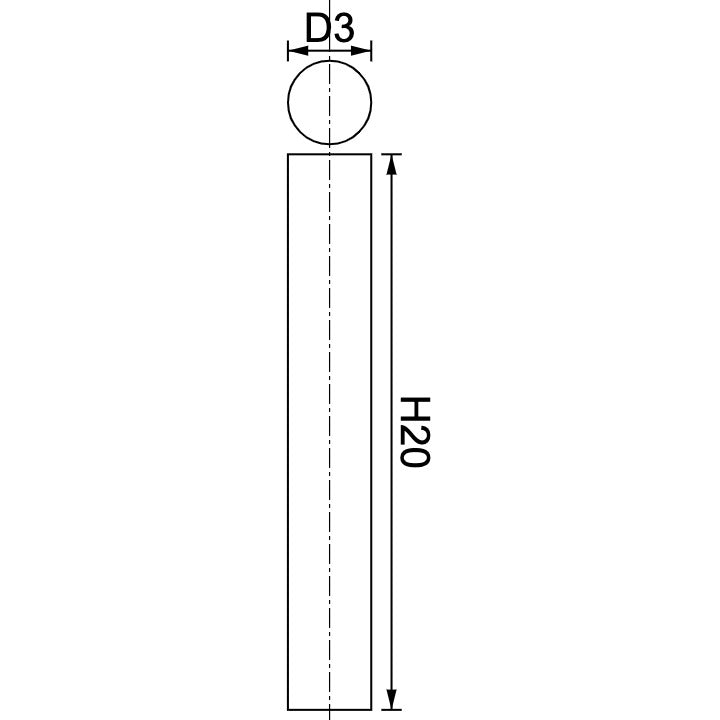

ND0977 Φ3mm x 20mm 426 mT 0.386kgf PDF

Warning

This product is not a toy and is unsuitable for children. Designed for scientific and industrial use, it contains strong Neodymium magnets that can be harmful if swallowed. These magnets are brittle and may chip or break upon impact. Handle with care. Please review the Warnings page before ordering.
