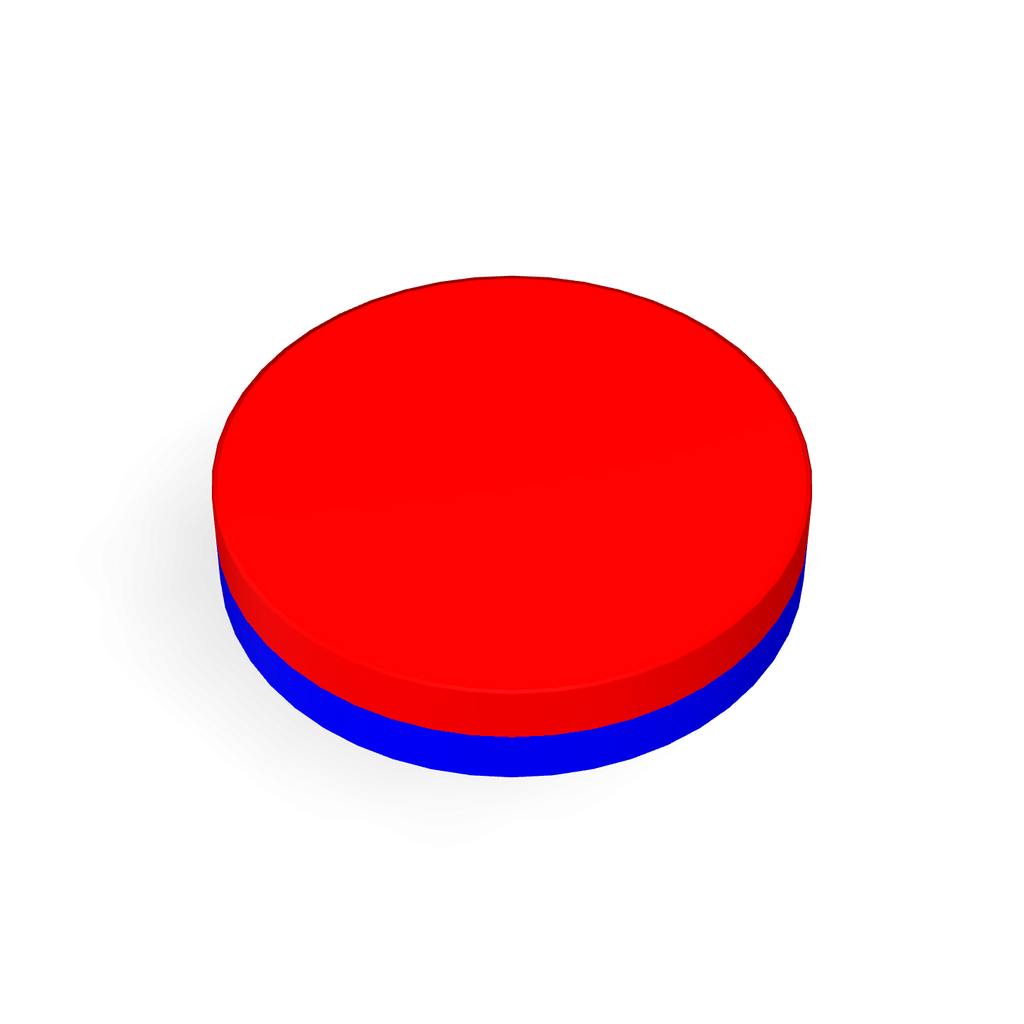

Neodymium Disc Magnet Φ5.0mm Polarity

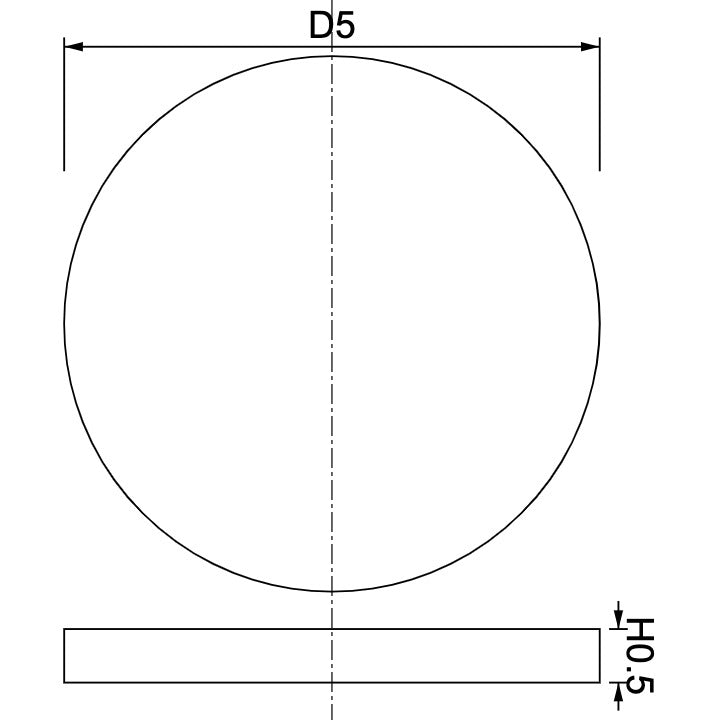

Neodymium Disc Magnet Φ5.0mm x 0.5mm
Neodymium Disc Magnet Φ5.0mm x 1mm

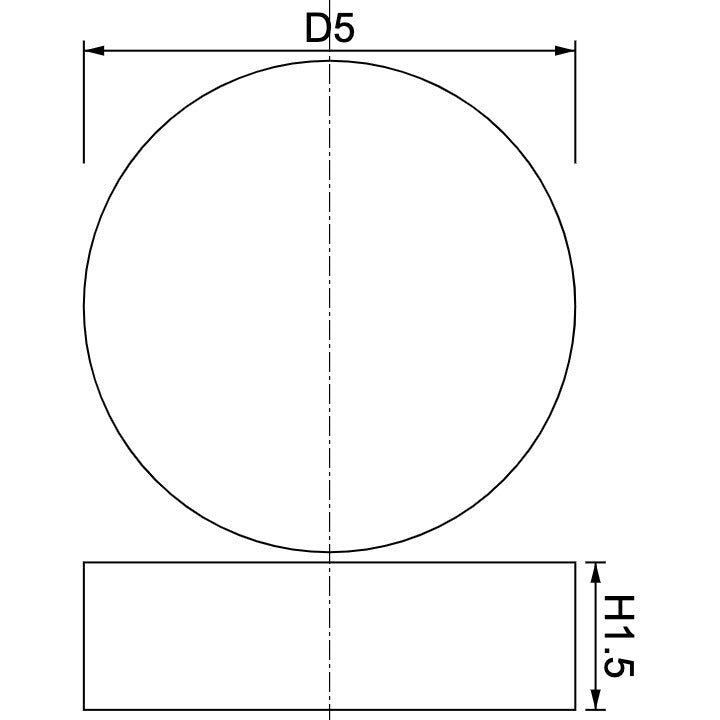

Neodymium Disc Magnet Φ5mm x 1.5mm

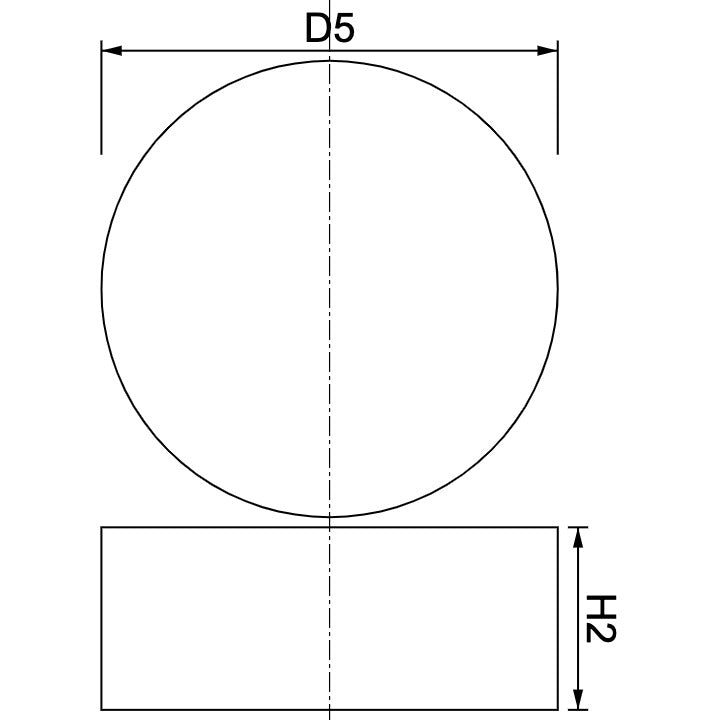

Neodymium Disc Magnet Φ5mm x 2mm
Neodymium Disc Magnet Φ5mm x 2.5mm
Neodymium Disc Magnet Φ5mm x 3mm

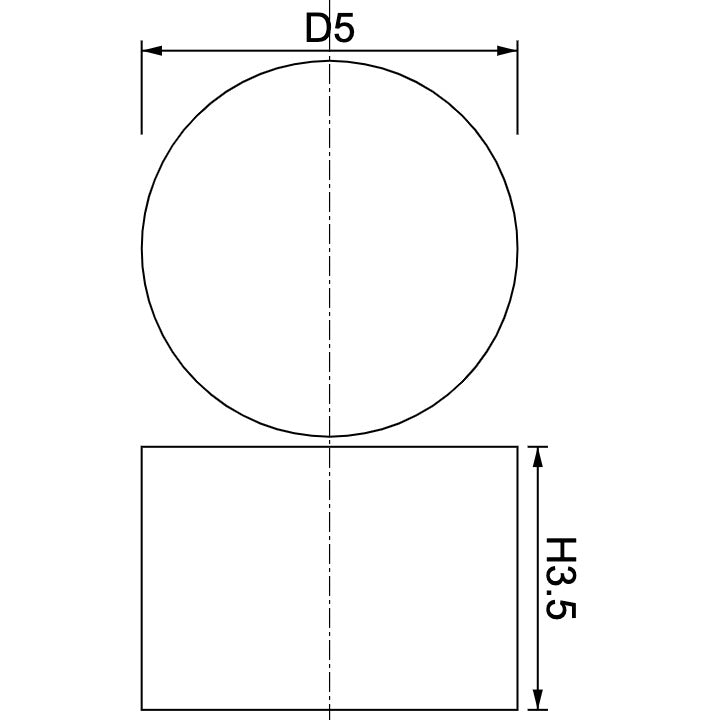

Neodymium Disc Magnet Φ5mm x 3.5mm
Neodymium Disc Magnet Φ5mm x 4mm
Neodymium Disc Magnet Φ5mm x 4.5mm
Neodymium Disc Magnet Φ5mm x 5mm

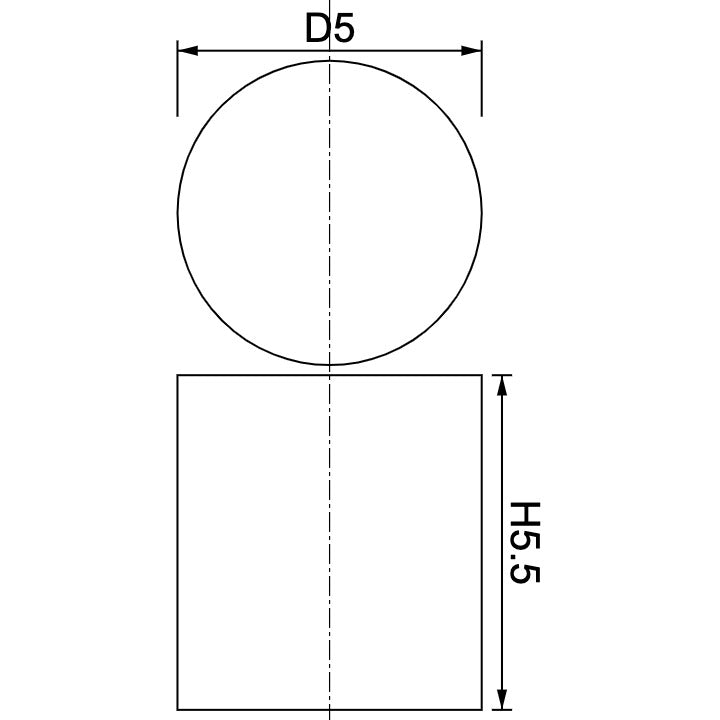

Neodymium Disc Magnet Φ5mm x 5.5mm
Neodymium Disc Magnet Φ5mm x 6mm
Neodymium Disc Magnet Φ5mm x 6.5mm
Neodymium Disc Magnet Φ5mm x 7mm
Neodymium Disc Magnet Φ5mm x 7.5mm
Neodymium Disc Magnet Φ5mm x 8mm
Neodymium Disc Magnet Φ5mm x 8.5mm

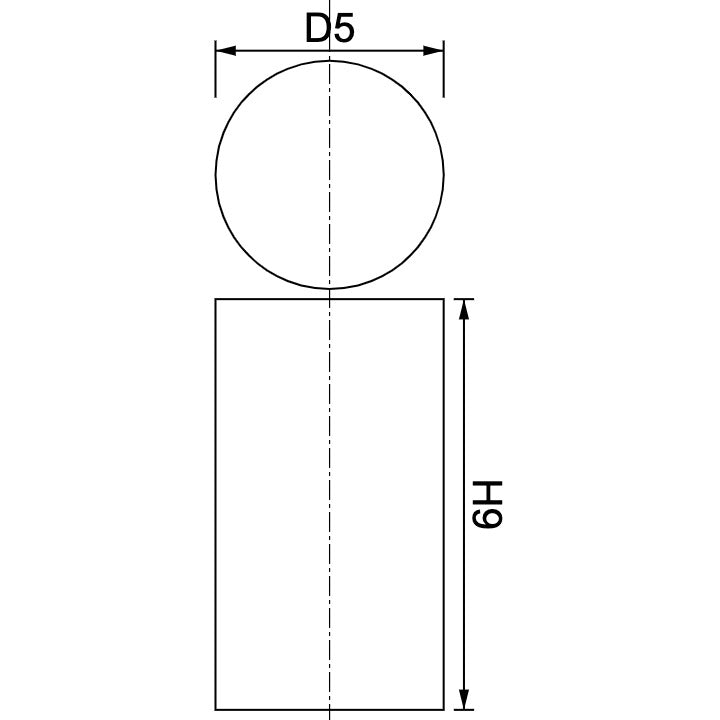

Neodymium Disc Magnet Φ5mm x 9mm
Neodymium Disc Magnet Φ5mm x 9.5mm
Neodymium Disc Magnet Φ5mm x 10mm

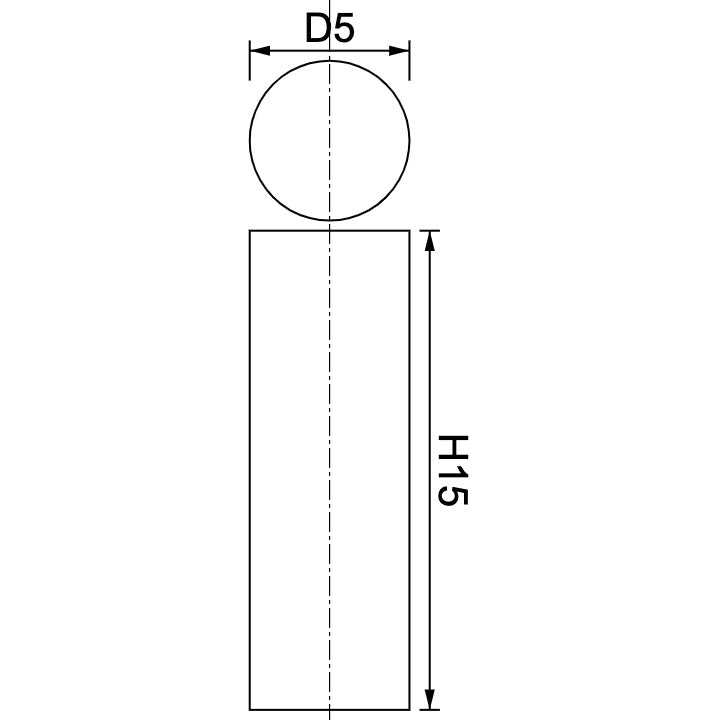

Neodymium Disc Magnet Φ5mm x 15mm

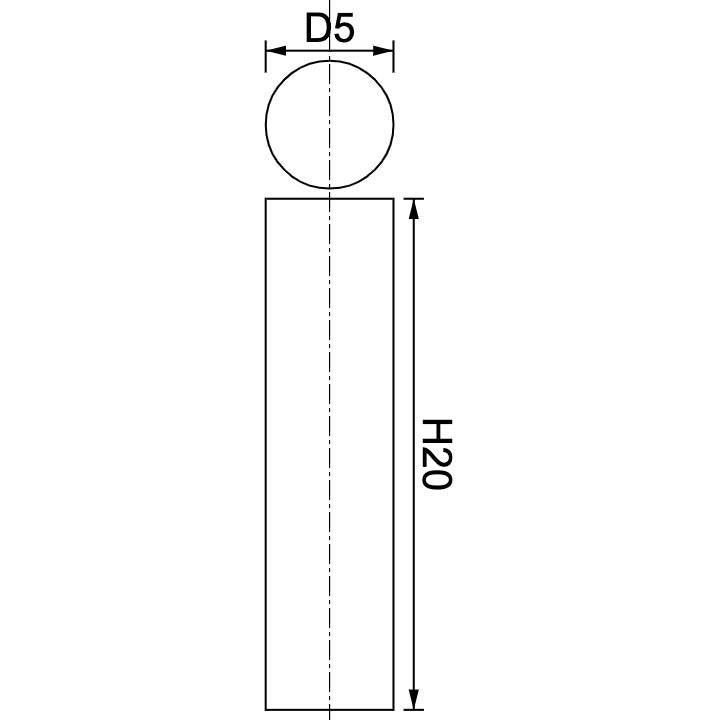

Neodymium Disc Magnet Φ5mm x 20mm
Neodymium Disc Magnet Φ5mm x 25mm
Roll over image to zoom in Click on image to zoom
Neodymium Disc Magnet Φ5.0mmNeodymium Disc Magnet Φ5.0mm PolarityNeodymium Disc Magnet Φ5.0mm x 0.5mmNeodymium Disc Magnet Φ5.0mm x 1mmNeodymium Disc Magnet Φ5mm x 1.5mmNeodymium Disc Magnet Φ5mm x 2mmNeodymium Disc Magnet Φ5mm x 2.5mmNeodymium Disc Magnet Φ5mm x 3mmNeodymium Disc Magnet Φ5mm x 3.5mmNeodymium Disc Magnet Φ5mm x 4mmNeodymium Disc Magnet Φ5mm x 4.5mmNeodymium Disc Magnet Φ5mm x 5mmNeodymium Disc Magnet Φ5mm x 5.5mmNeodymium Disc Magnet Φ5mm x 6mmNeodymium Disc Magnet Φ5mm x 6.5mmNeodymium Disc Magnet Φ5mm x 7mmNeodymium Disc Magnet Φ5mm x 7.5mmNeodymium Disc Magnet Φ5mm x 8mmNeodymium Disc Magnet Φ5mm x 8.5mmNeodymium Disc Magnet Φ5mm x 9mmNeodymium Disc Magnet Φ5mm x 9.5mmNeodymium Disc Magnet Φ5mm x 10mmNeodymium Disc Magnet Φ5mm x 15mmNeodymium Disc Magnet Φ5mm x 20mmNeodymium Disc Magnet Φ5mm x 25mm

Neodymium Disc Magnet Ø5mm

SKU: ND0056
Height: 1mm
Price:
$0.61 $0.67
Stock:
In stock (1460 units), ready to be shipped

Description

Neodymium Disc Magnet

Diameter: 5mm (0.20")

Material: Neodymium (NdFeB)

Coating: Nickel-plated

This neodymium disc magnet is available in various height options and delivers exceptional strength and precision for industrial applications. Designed for reliability, its compact form factor and corrosion-resistant coating ensure durability in demanding environments. It is ideal for use in manufacturing, electronics, and specialized machinery. Contact us for bulk orders!

For detailed specifications, please refer to the Product Specification PDF files available for each product type.

Product Dimension, Magnetic Flux Density, and Adsorption Force:

Code DxH Magnet Flux Density B Adsorption force F Product Specifications
ND0309 Φ5mm x 0.5mm 95.5 mT 0.118kgf PDF
ND0097 Φ5mm x 0.8mm 148.4 mT 0.213kgf PDF

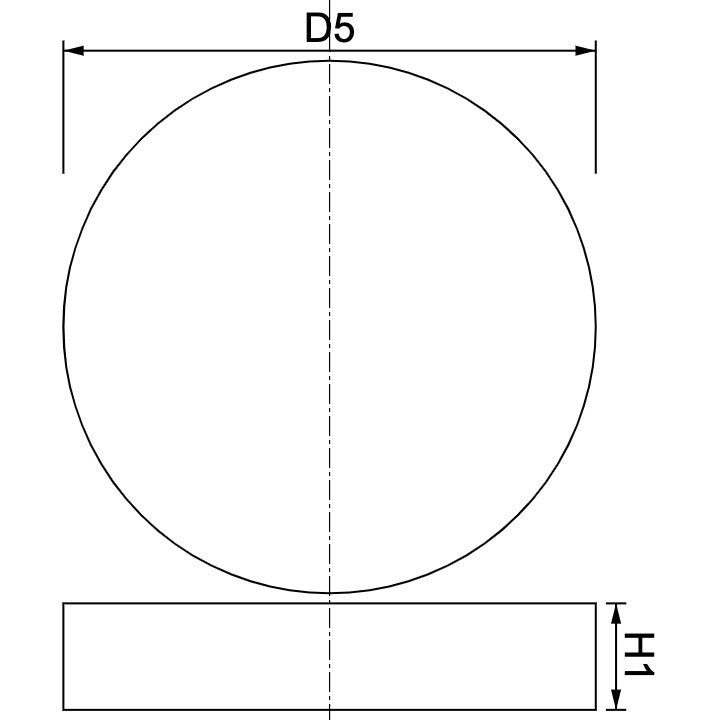

ND0056 Φ5mm x 1mm 180.9 mT 0.267kgf PDF
ND0007 Φ5mm x 1.5mm 250.5 mT 0.354kgf PDF
ND0080 Φ5mm x 2mm 304.2 mT 0.421kgf PDF

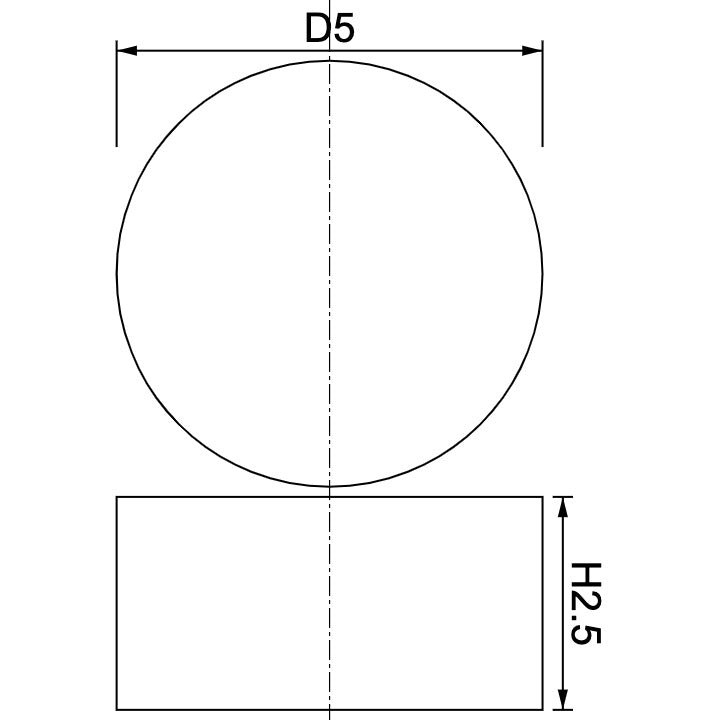

ND0407 Φ5mm x 2.5mm 344.3 mT 0.539kgf PDF

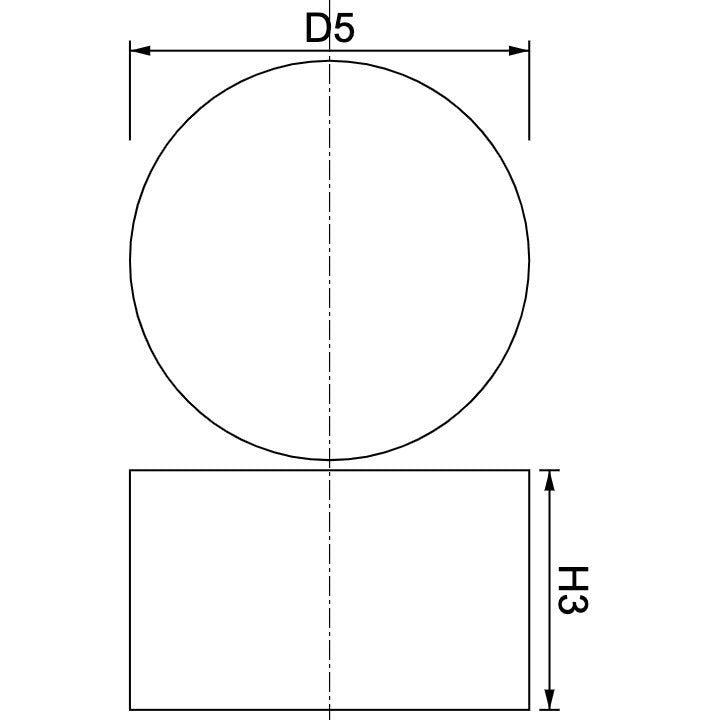

ND0108 Φ5mm x 3mm 374.1 mT 0.636kgf PDF
ND0408 Φ5mm x 3.5mm 396.3 mT 0.714kgf PDF

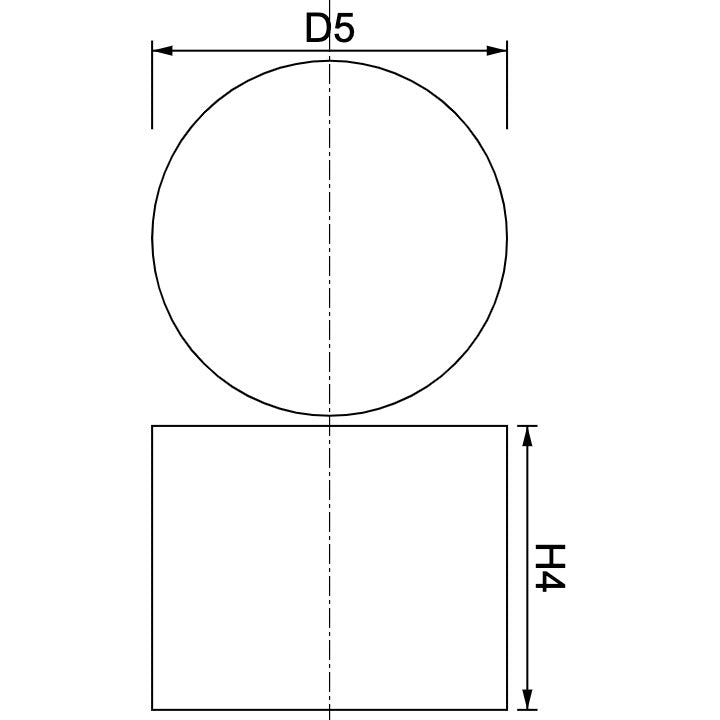

ND0057 Φ5mm x 4mm 412.9 mT 0.775kgf PDF

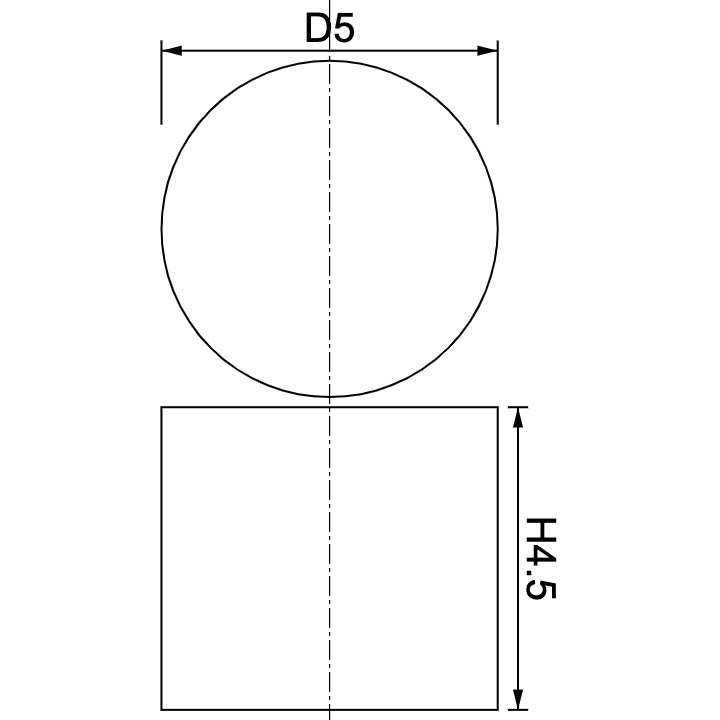

ND0409 Φ5mm x 4.5mm 425.7 mT 0.824kgf PDF

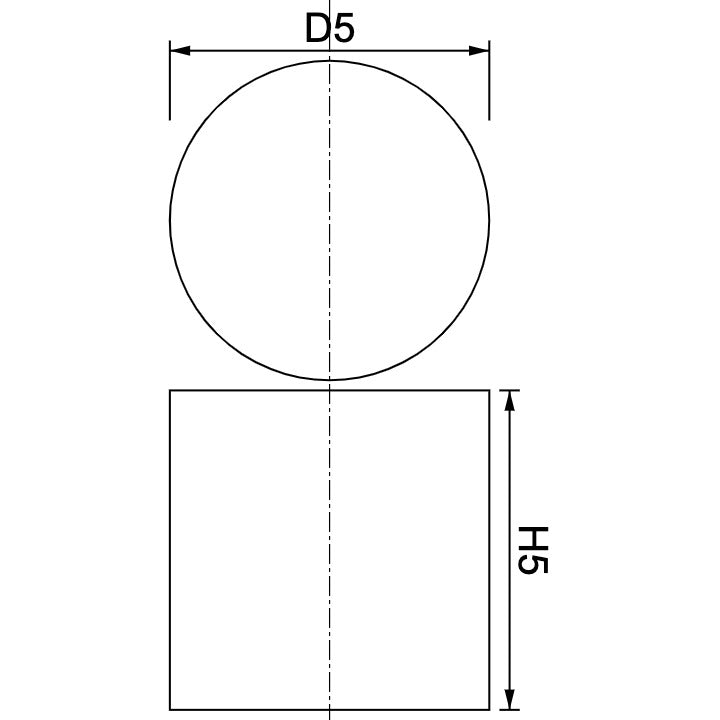

ND0009 Φ5mm x 5mm 435.6 mT 0.863kgf PDF
ND0410 Φ5mm x 5.5mm 443.3 mT 0.894kgf PDF

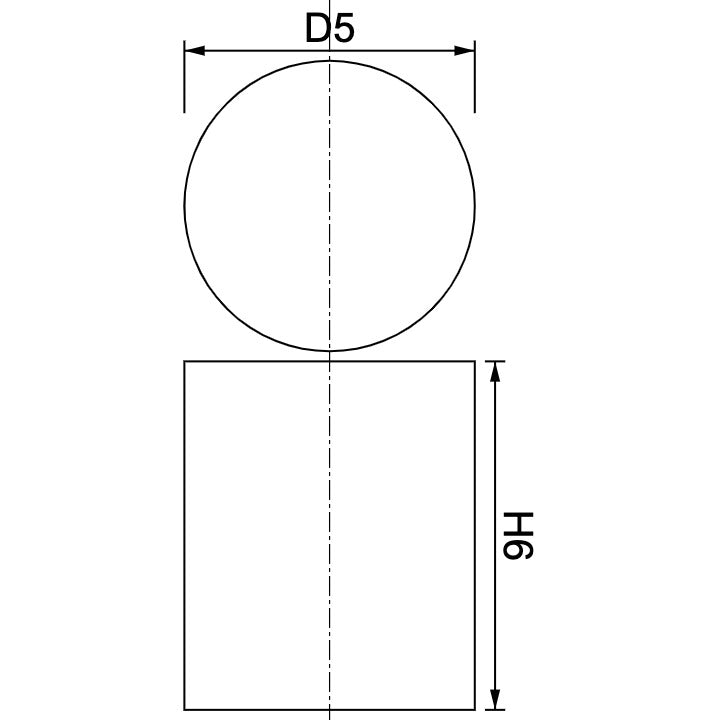

ND0137 Φ5mm x 6mm 449.5 mT 0.919kgf PDF

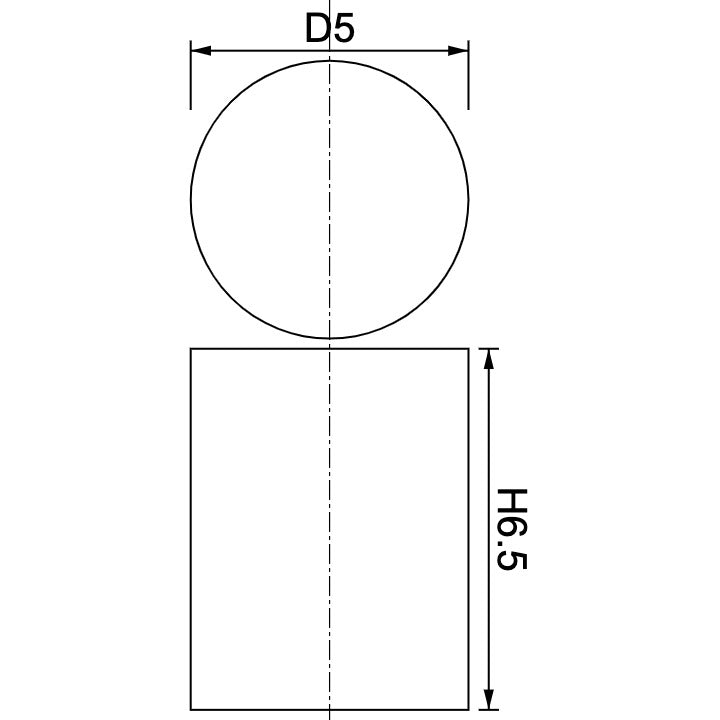

ND0411 Φ5mm x 6.5mm 454.5 mT 0.939kgf PDF

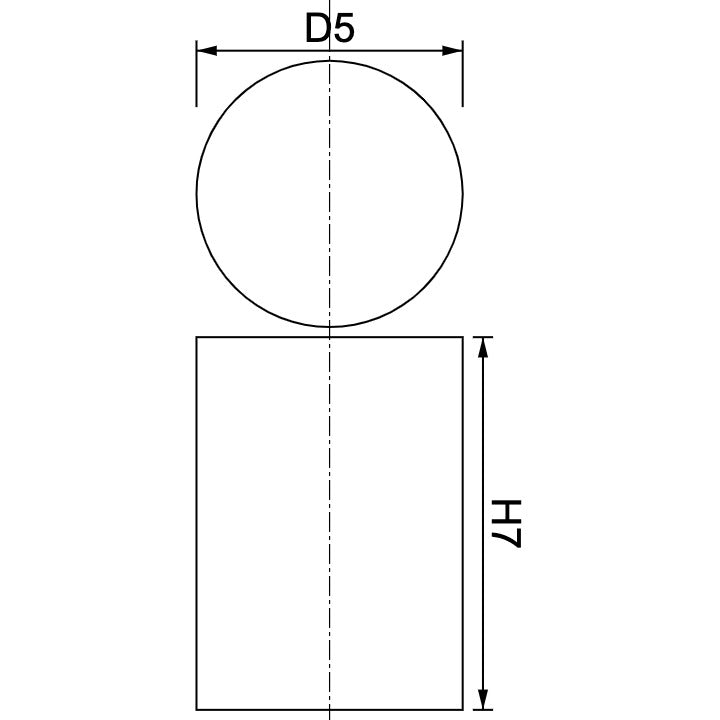

ND0139 Φ5mm x 7mm 458.6 mT 0.956kgf PDF

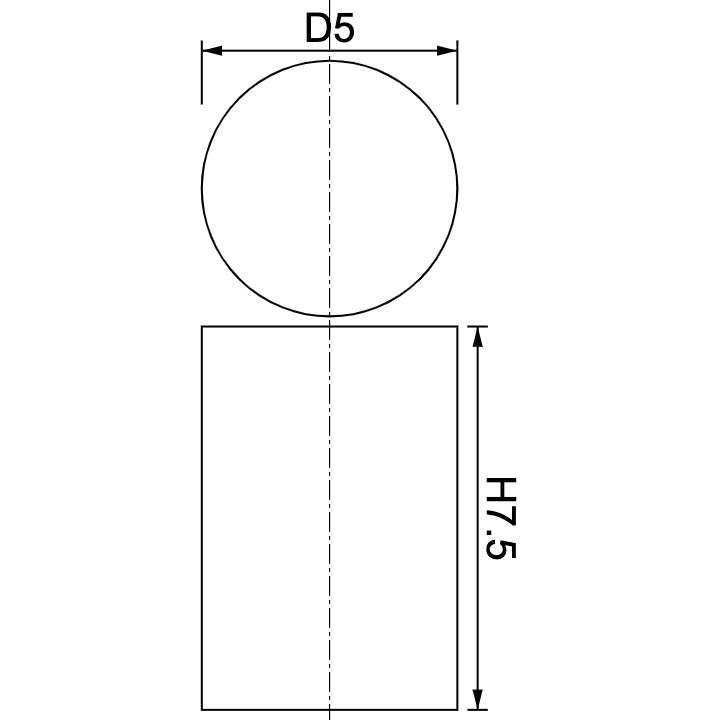

ND0412 Φ5mm x 7.5mm 462 mT 0.97kgf PDF

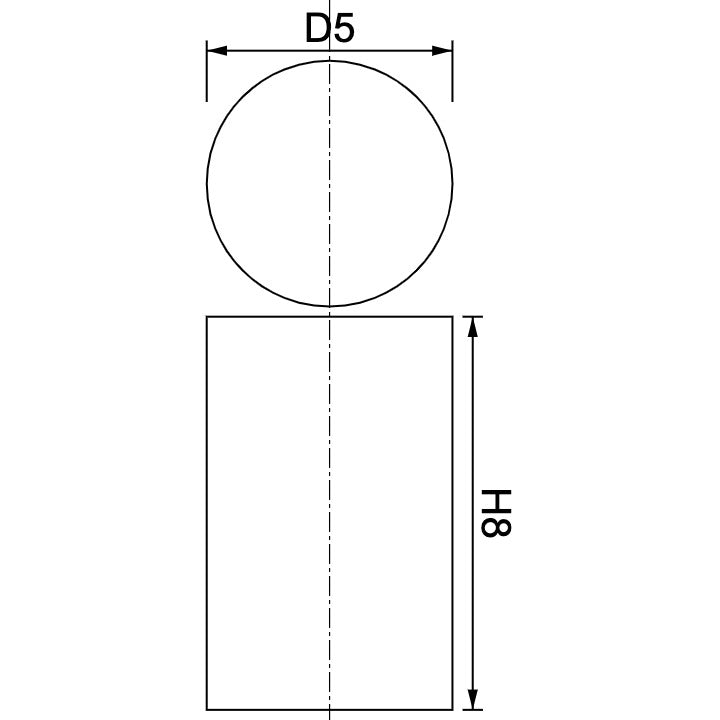

ND0058 Φ5mm x 8mm 464.8 mT 0.982kgf PDF

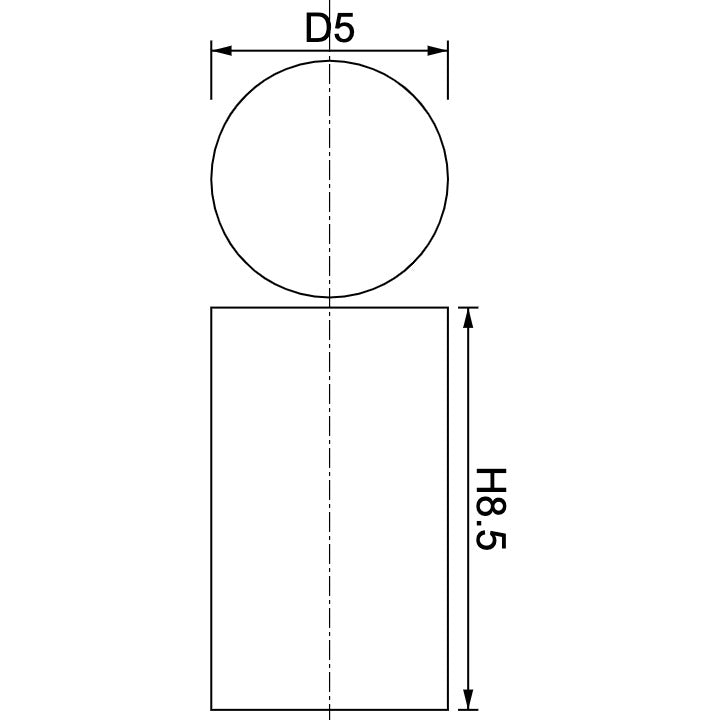

ND0413 Φ5mm x 8.5mm 467.2 mT 0.992kgf PDF
ND0141 Φ5mm x 9mm 469.2 mT 1kgf PDF

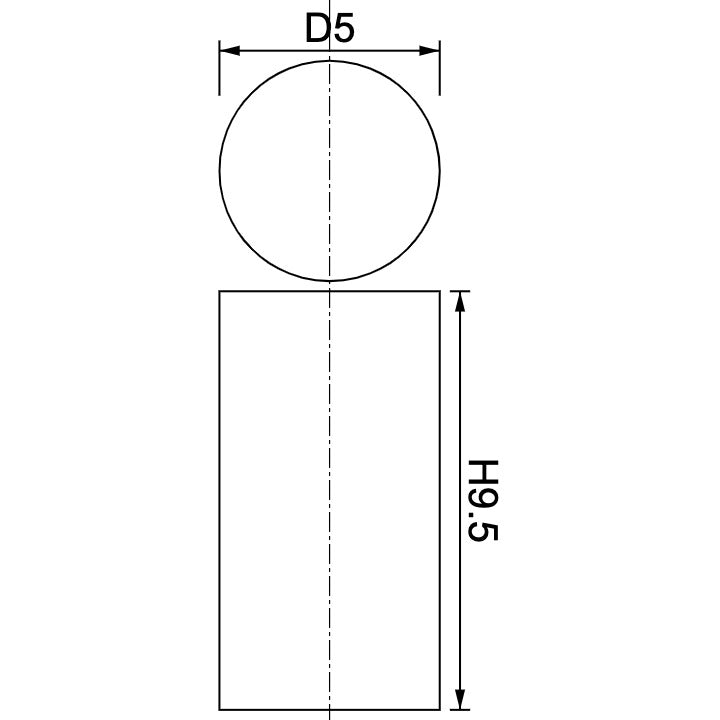

ND0414 Φ5mm x 9.5mm 470.9 mT 1kgf PDF

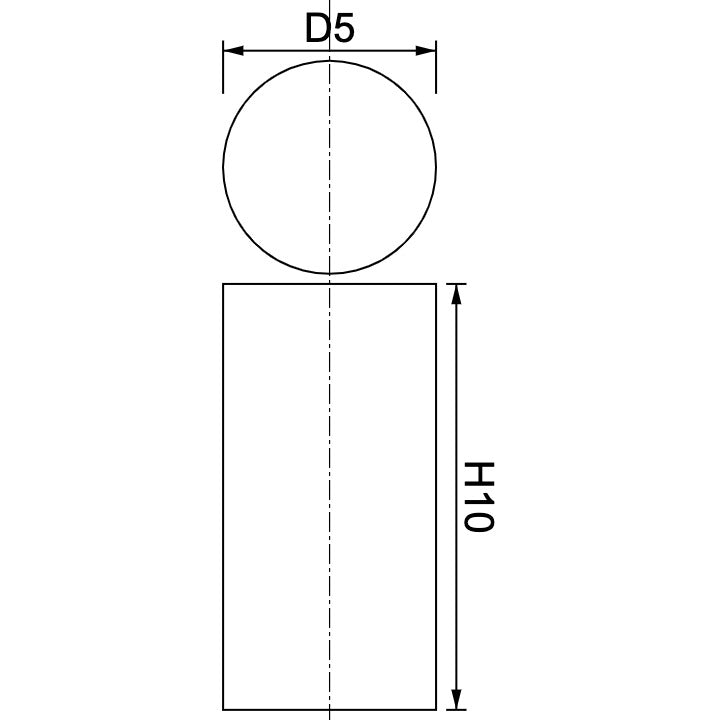

ND0090 Φ5mm x 10mm 472.4 mT 1.01kgf PDF
ND0366 Φ5mm x 12.5mm 477.5 mT 1.03kgf PDF
ND0868 Φ5mm x 15mm 480.3 mT 1.04kgf PDF
ND0933 Φ5mm x 20mm 483.2 mT 1.06kgf PDF

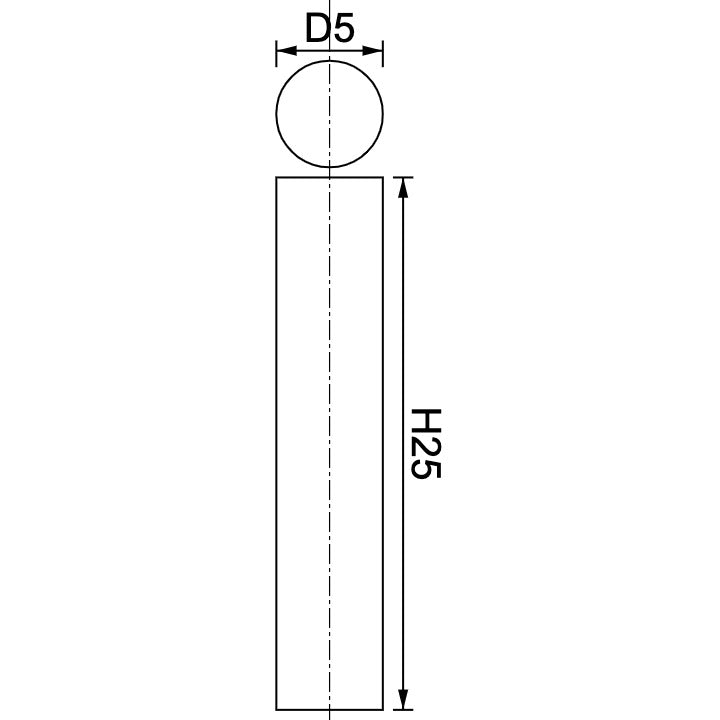

ND0367 Φ5mm x 25mm 484.5 mT 1.06kgf PDF

Warning

This product is not a toy and is unsuitable for children. Designed for scientific and industrial use, it contains strong Neodymium magnets that can be harmful if swallowed. These magnets are brittle and may chip or break upon impact. Handle with care. Please review the Warnings page before ordering.
