Description
360 degree/up/down 180 degree rotation

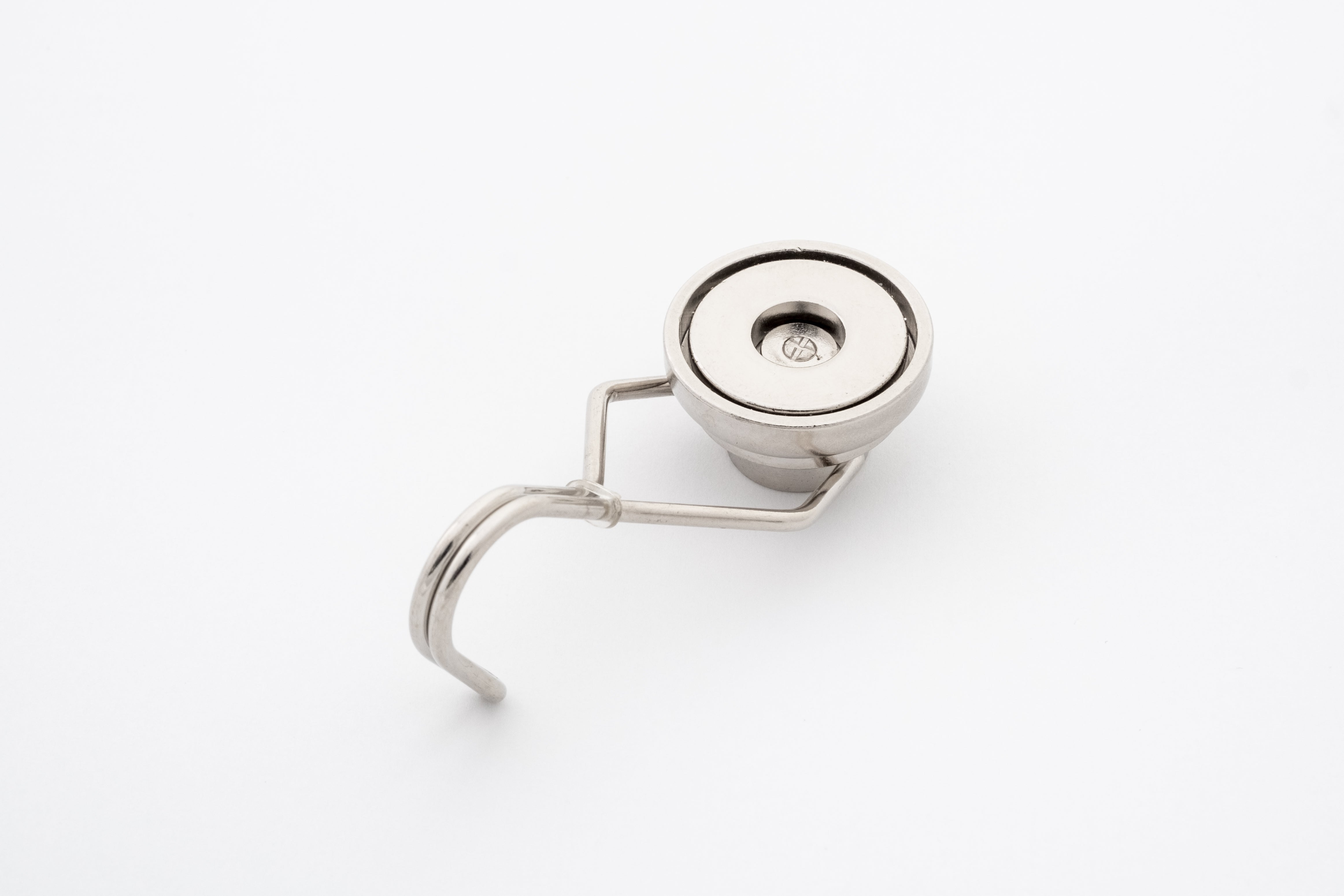

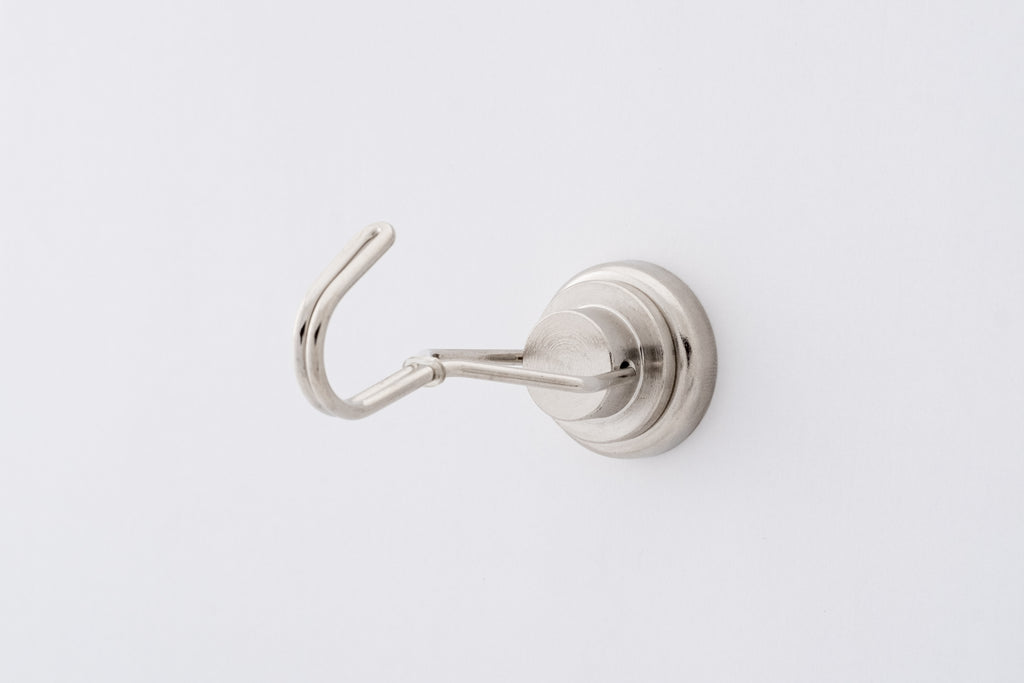

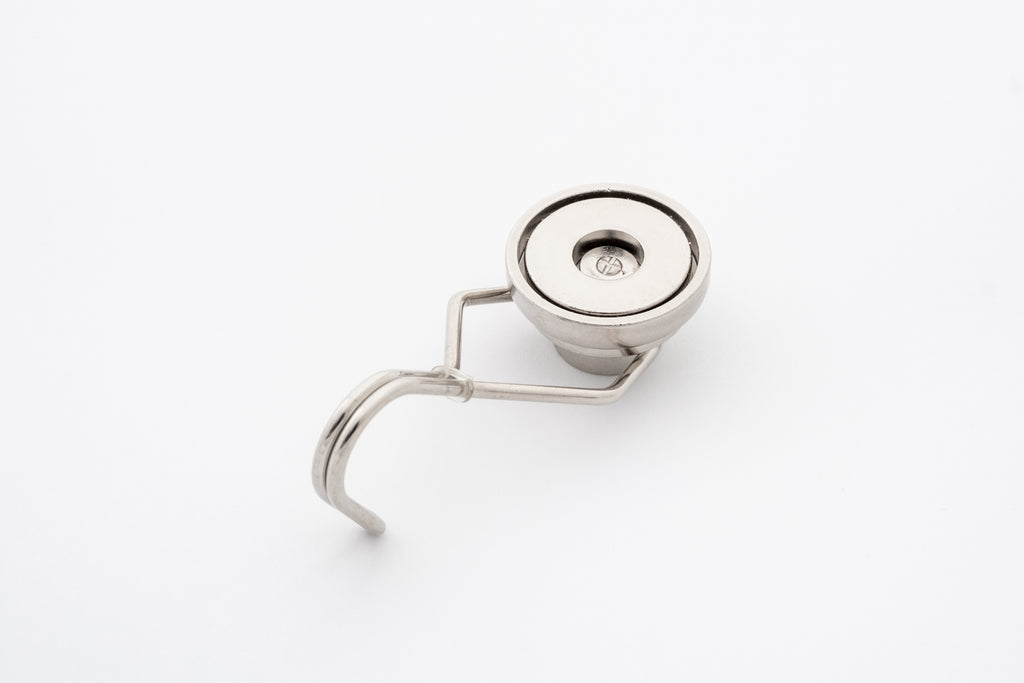

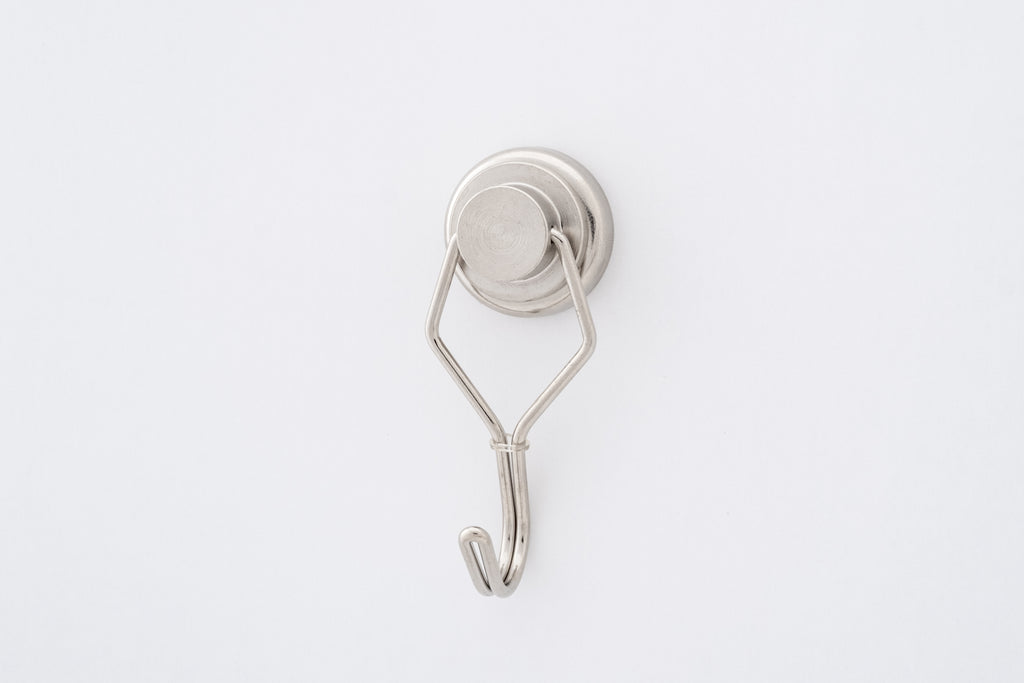

rotating hook
| name | Product Specifications | S.I. | C.G.S. |
|---|---|---|---|
| shape | |||
| Magnetization direction | M | Axial direction | |
| surface treatment | NiCuNi | -μm | - |
| magnetic properties | |||
| Suction power Adsorption power |
F | 5 kgf | 5000gf |
| Maximum operating temperature | Tw | 80 ℃ | 176 °F |
| Material property | |||
| Material symbol | Magnetic hook rotating type | 35 | |
| residual magnetic flux density | Br | 1170-1220mT | 11.7-12.2 kG |
| coercive force | Hcb | ≧868 kA/m | ≧10.9 kOe |
| Intrinsic coercive force | Hcj | ≧955 kA/m | ≧12 kOe |
| maximum energy product | BH | 263-287 kj/m3 | 33-36 MGOe |
| temperature coefficient | Br | -0.12 %/℃ | 31.78 %/°F |
| Hcj | -0.55 %/℃ | 31.01 %/°F | |
| Heatproof temperature | Tw | ≦80 ℃ | ≦176 °F |
| curie temperature | Tc | 310 ℃ | 590 °F |
| density | ρ | 7.5 kg/m3 | - |
| weight | Net | 0.032kg | 32g |
| remarks | |||
| REACH RoHS Directive | |||
Warning
This product is not a toy and is unsuitable for children. Designed for scientific and industrial use, it contains strong Neodymium magnets that can be harmful if swallowed. These magnets are brittle and may chip or break upon impact. Handle with care. Please review the Warnings page before ordering.
